High-Voltage Equipment

Source-matched fuse cutouts, insulators, wall bushings, vacuum switching equipment and disconnect switches for project-specific voltage and duty selection.

High-Voltage Product Families

Each family below is taken from the submitted high-voltage workbook. Exact model, voltage class, installation and documentation are confirmed before quotation.

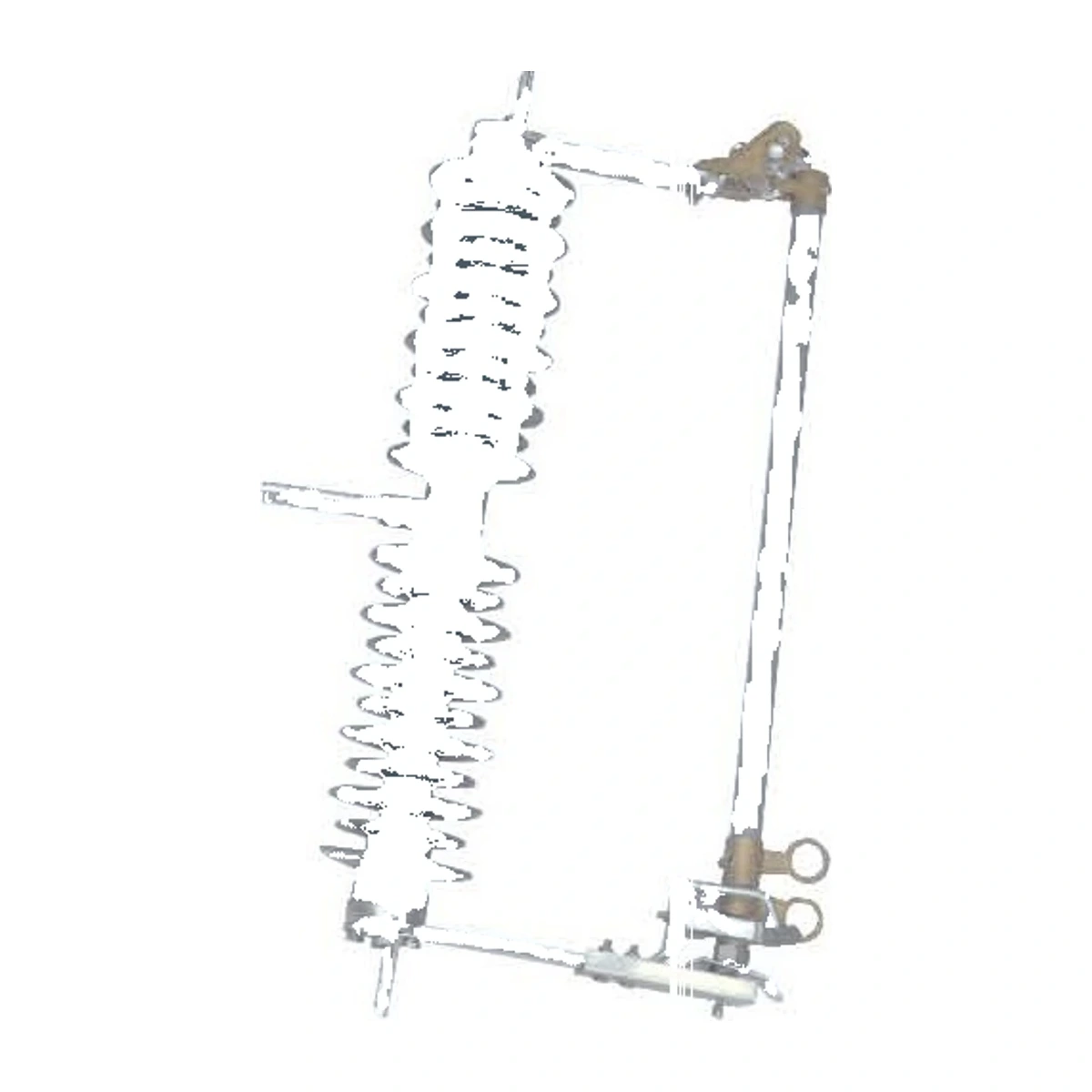

Drop-Out Fuse Cutouts

Drop-Out Fuse Cutouts

NRWG5-40.5/200 · 35kV

View submitted product family

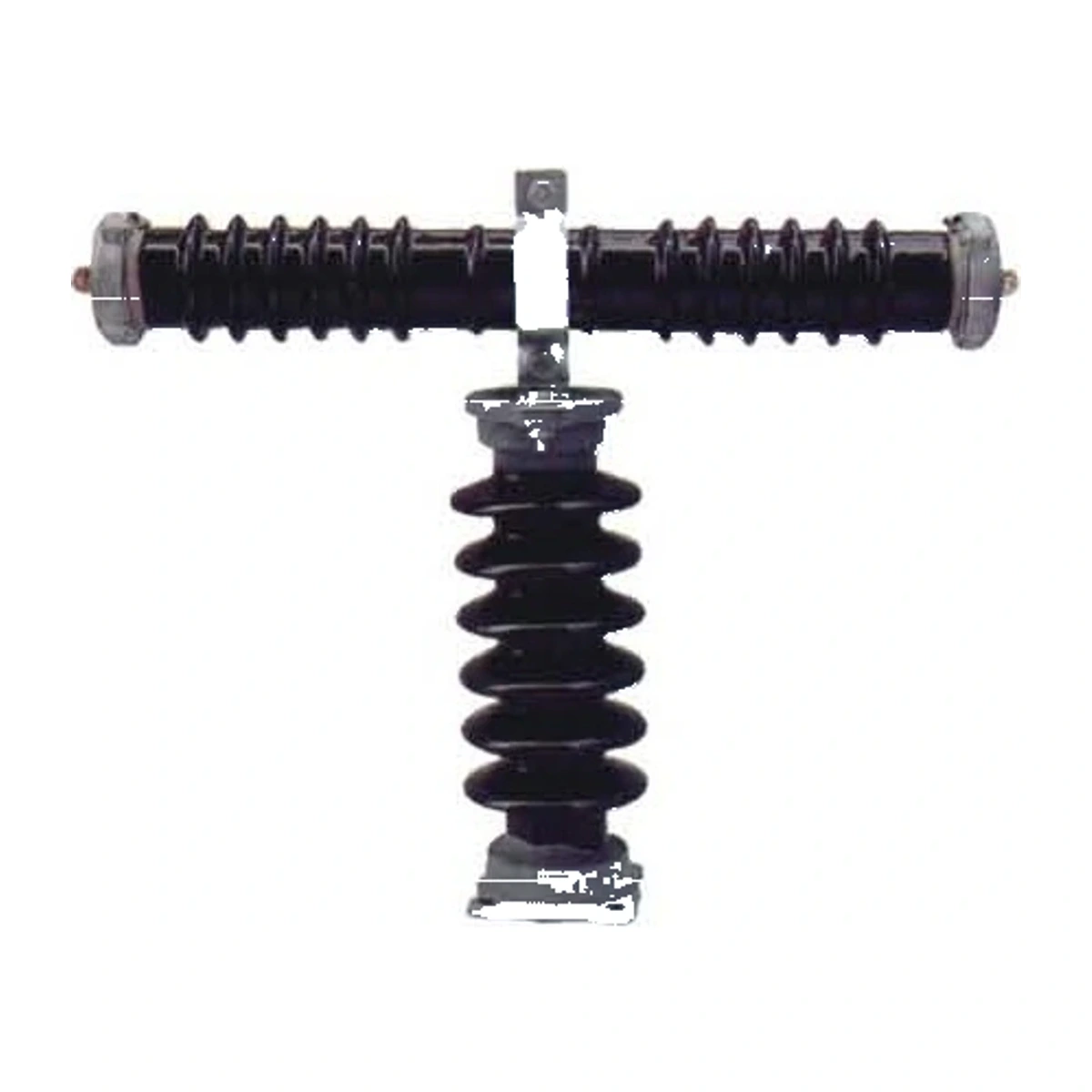

Current-Limiting Fuses

Current-Limiting Fuses

RW10-35/0.5 and 26 variants · 35kV

View submitted product family

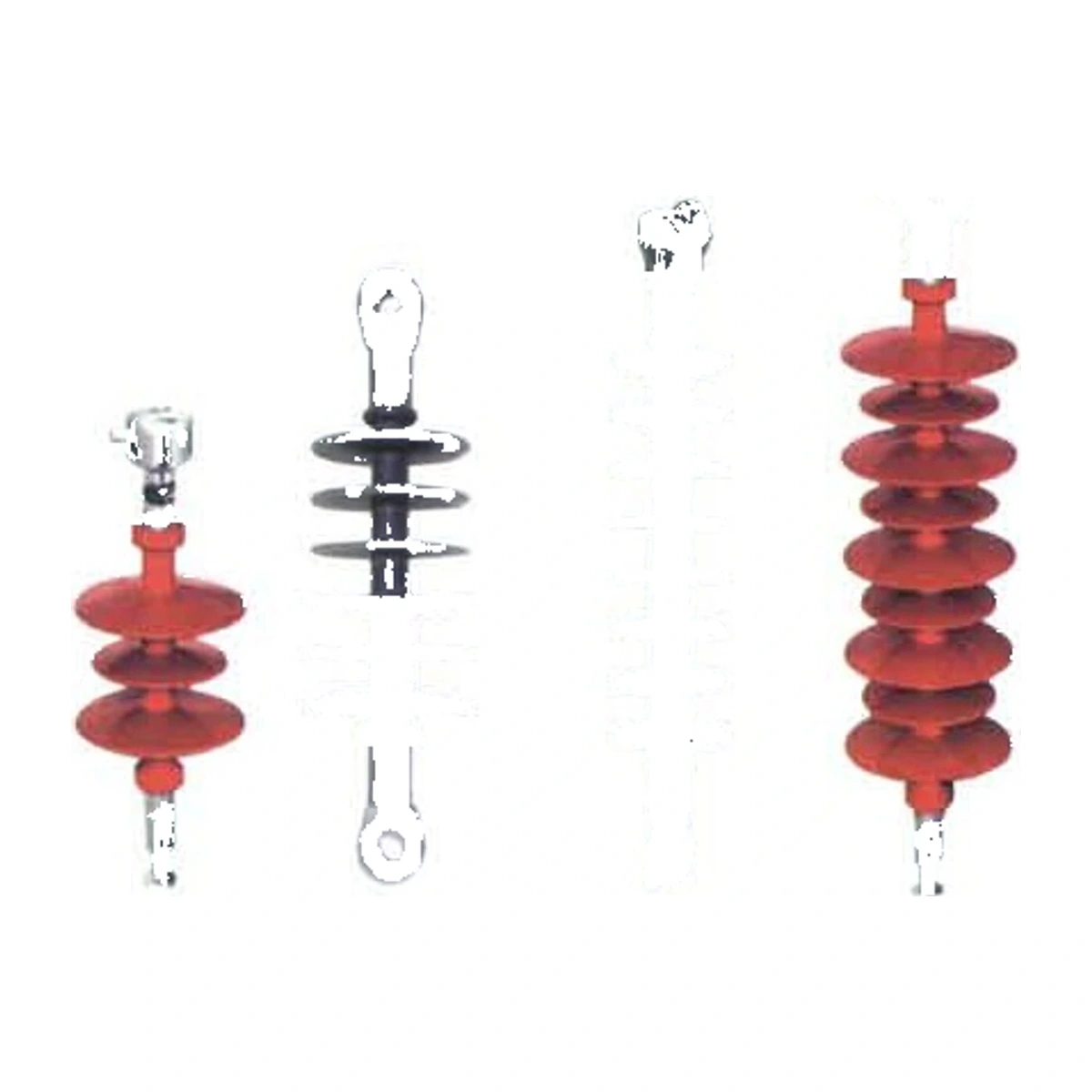

Composite Insulators

Composite Insulators

FXBW4-10/100 and 4 variants · ≤10kV

View submitted product family

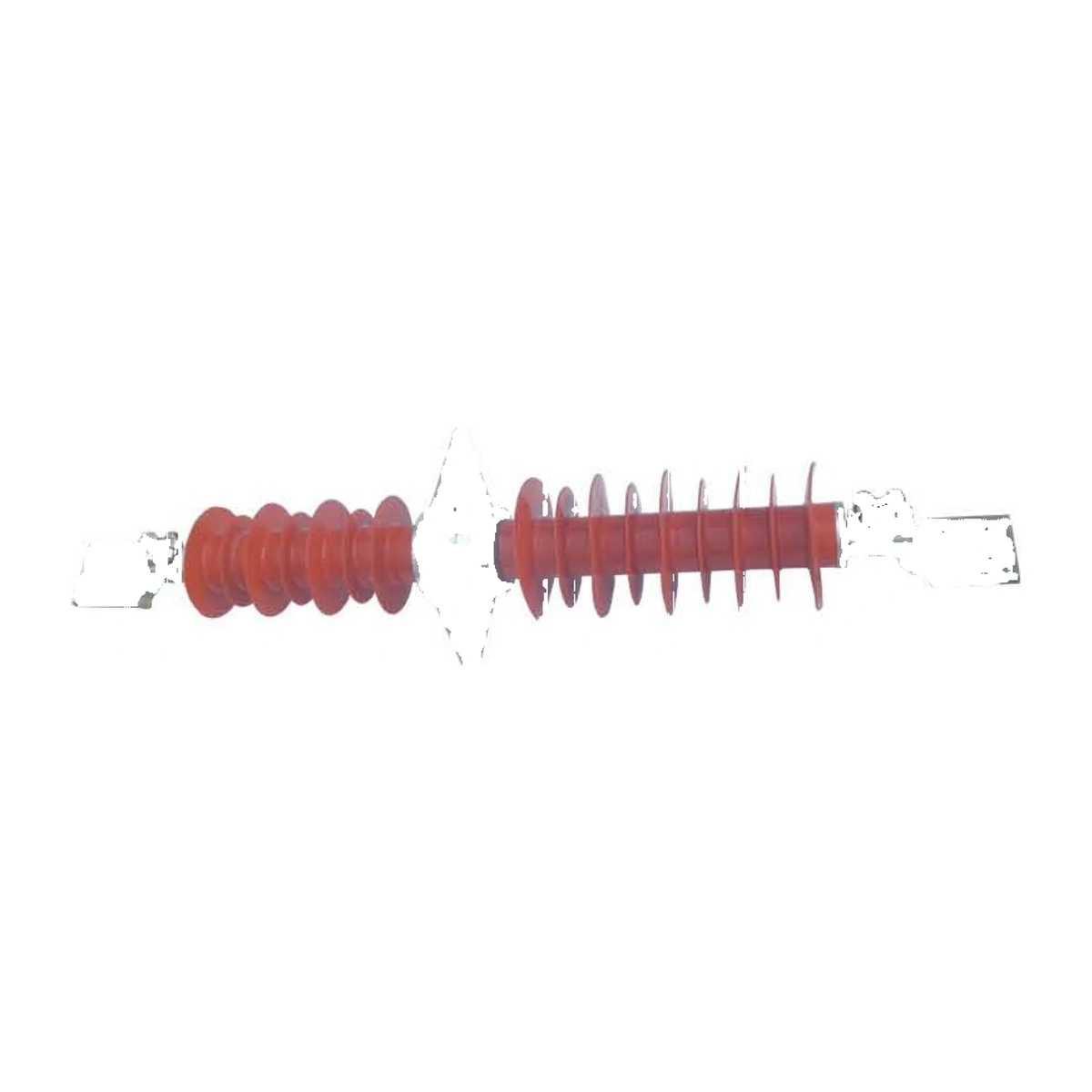

Composite Wall Bushings

Composite Wall Bushings

FCGW-10/630~3150 · ≤10kV

View submitted product family

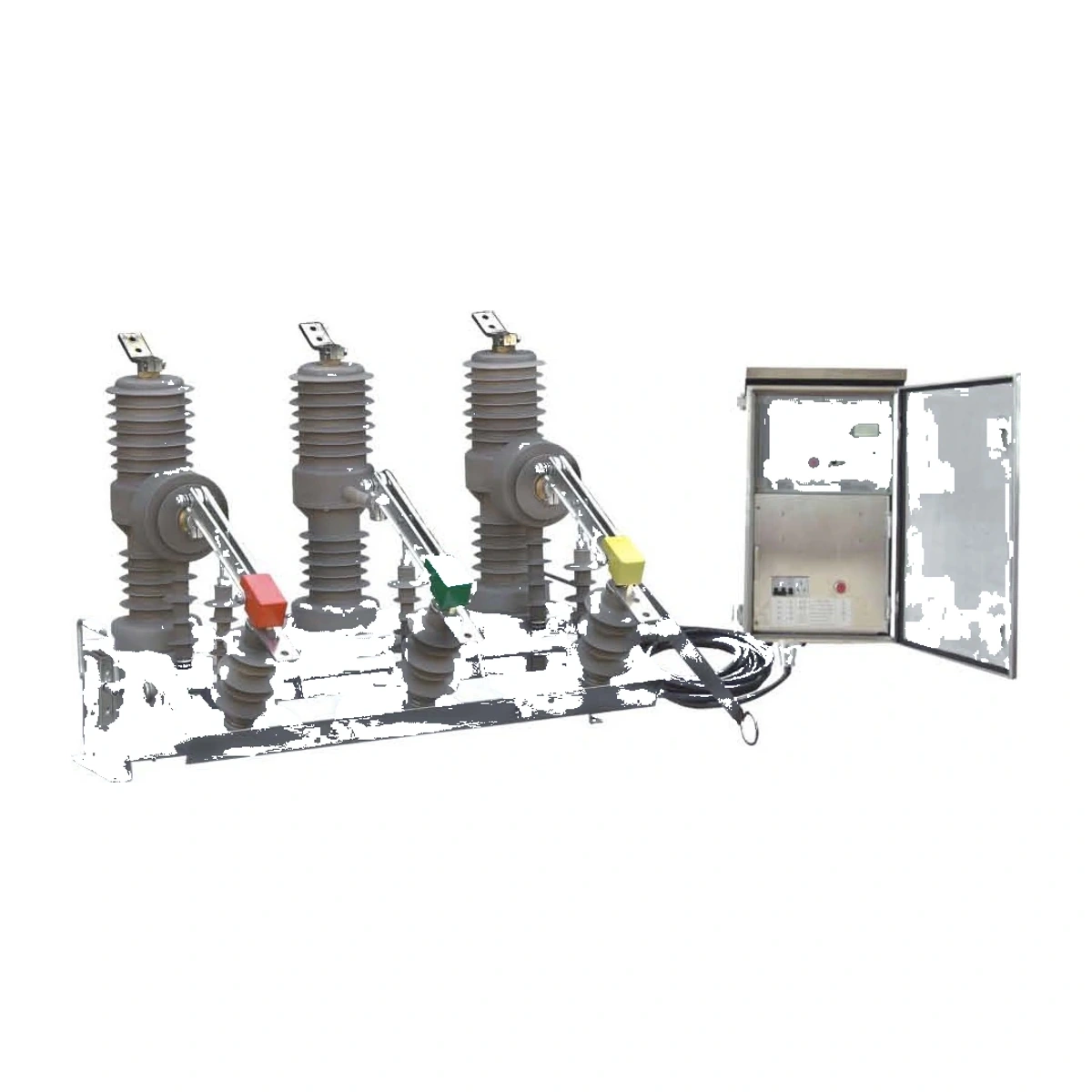

Vacuum Circuit Breakers

Vacuum Circuit Breakers

ZW32-12 and 5 variants · ≤10kV

View submitted product family

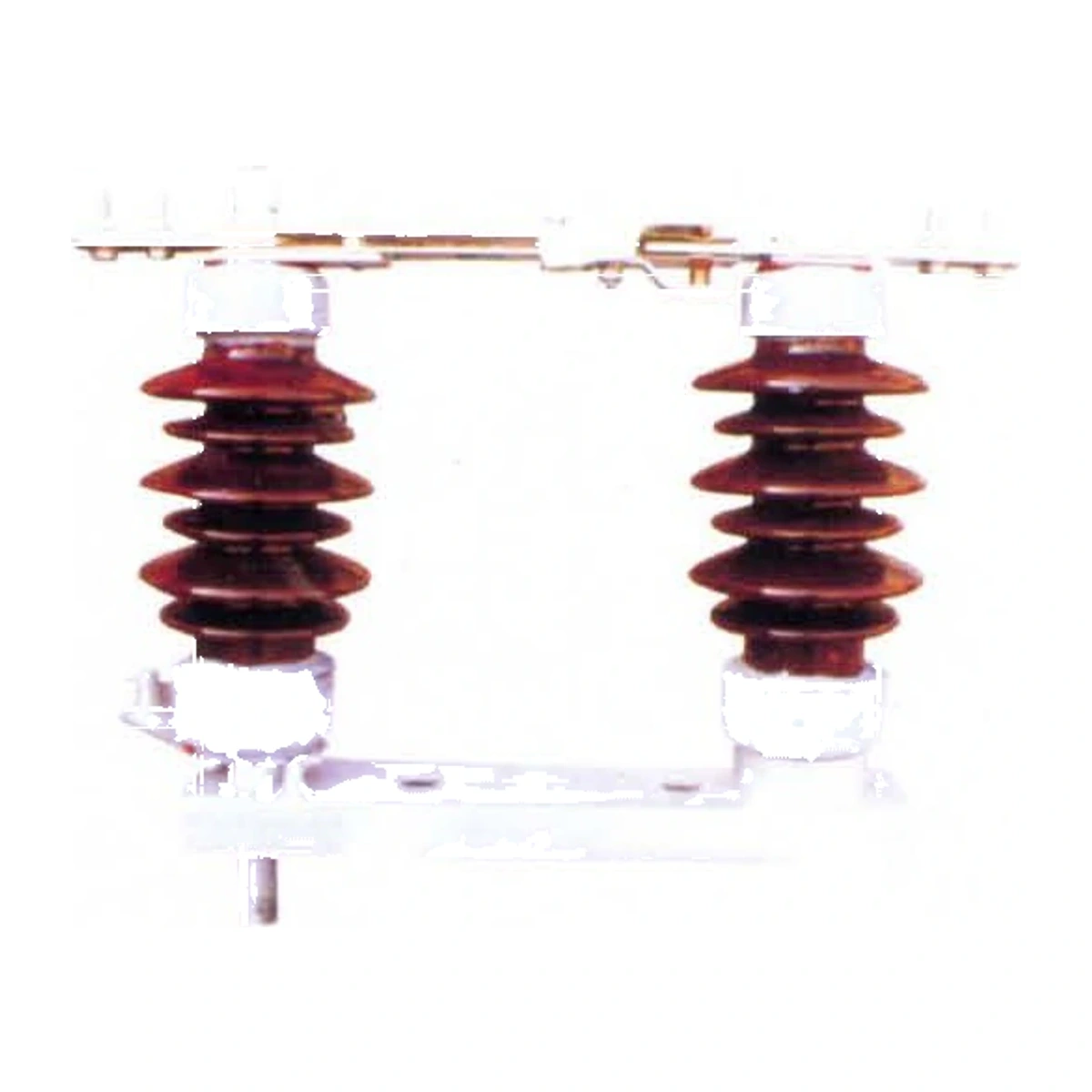

High-Voltage Disconnect Switches

High-Voltage Disconnect Switches

GW4-40.5/72.5/126 (DW) · ≤10kV

View submitted product family

High-Voltage Equipment — Selection Notes

What information is required for model selection?

Provide system voltage, insulation level, current rating, installation environment, mounting form and applicable project standard.

Are the displayed images tied to the submitted catalog?

Yes. The representative images and model references come from the submitted workbook; final appearance is confirmed against the approved model.

Can compliance documents be supplied?

Available drawings, test reports and certificates are reviewed against the exact manufacturer, model and project scope before issue.
