PCT, LC, 222, 2273 and D2/T2 quick-connect families, displayed with the exact series names, ratings and product photos supplied by the customer.

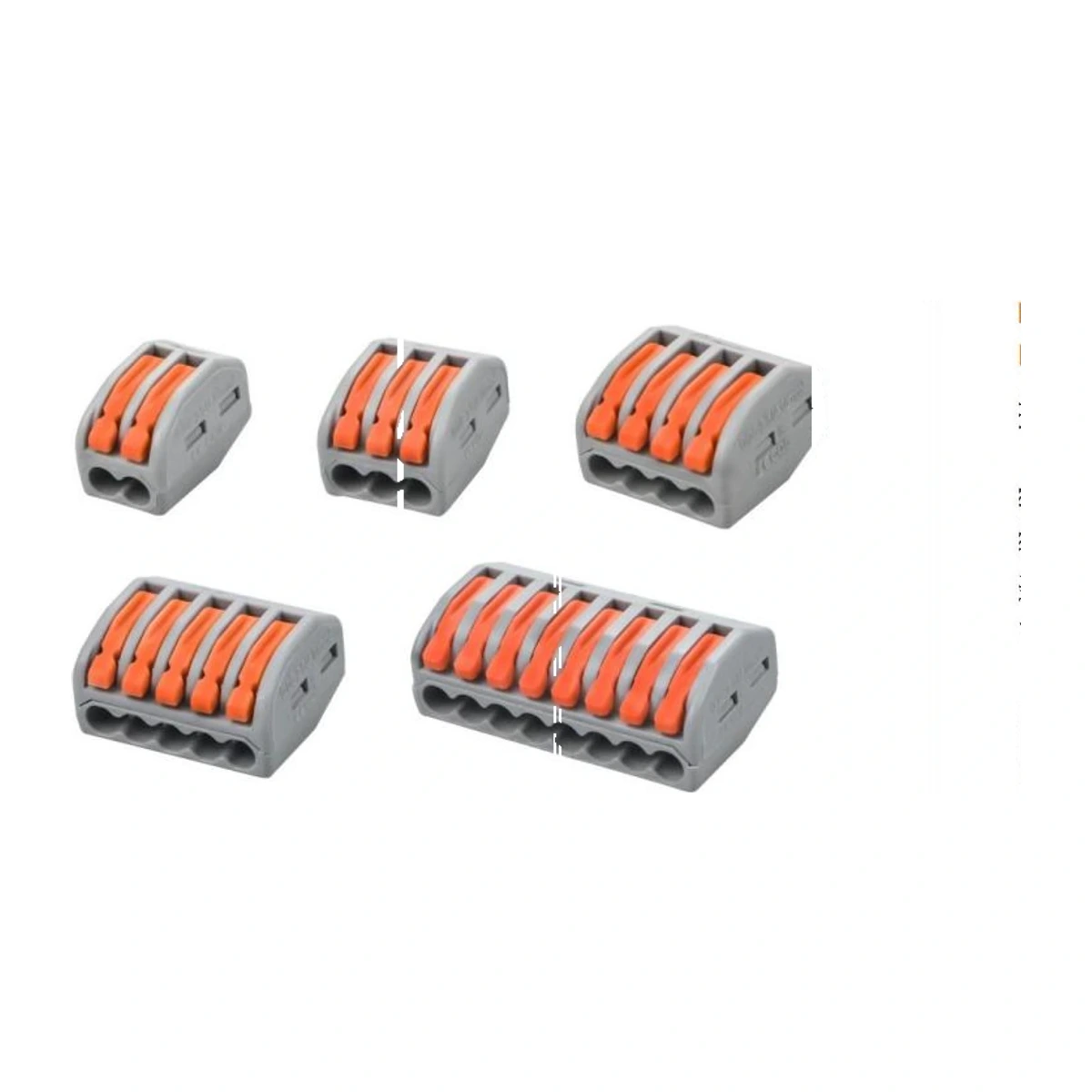

PCT-212 · 213 · 214 · 215 · 218
400V · 32A · PA6

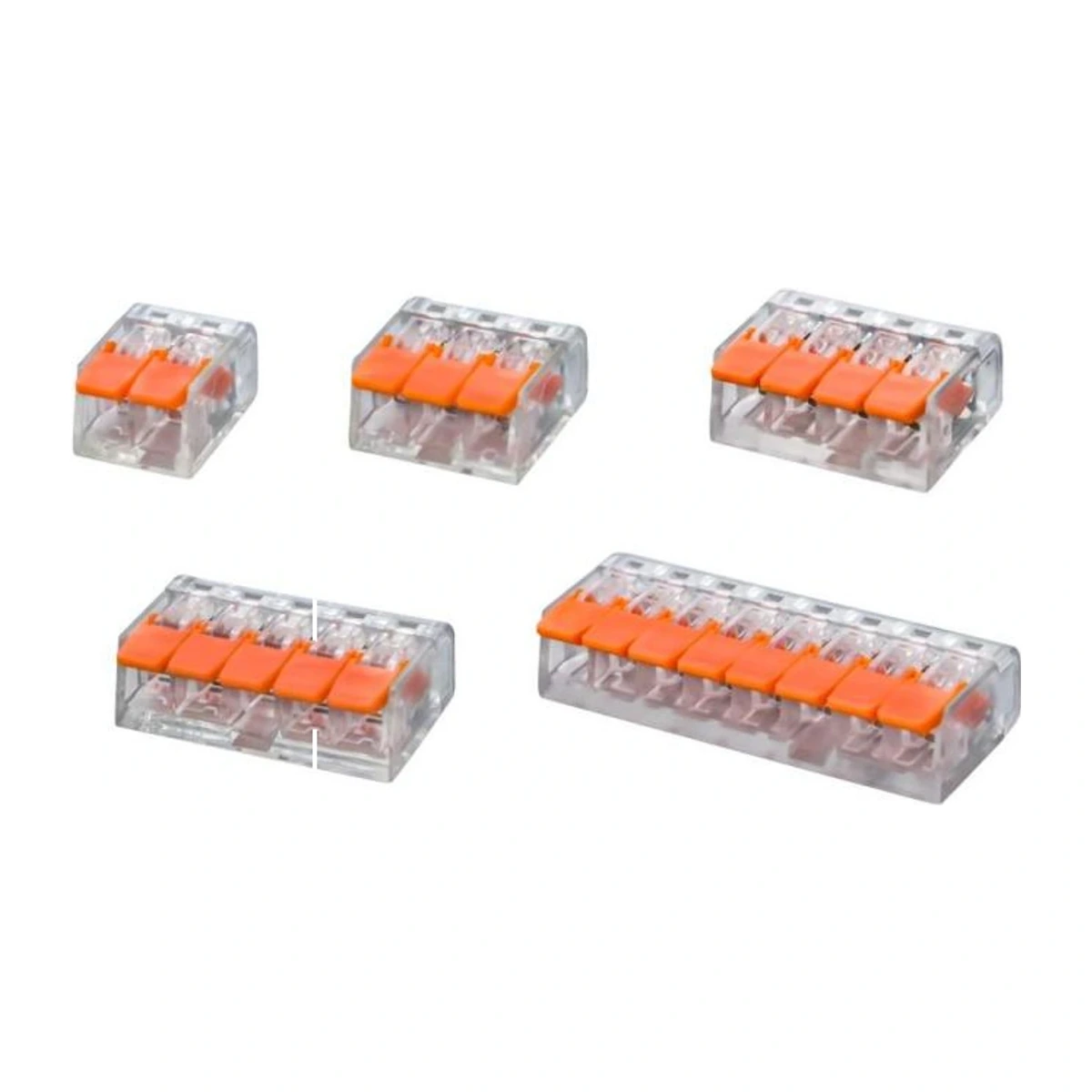

PCT-412 · 413 · 414 · 415 · 418
450V · 32A · PC UL94 V-2 flame-retardant

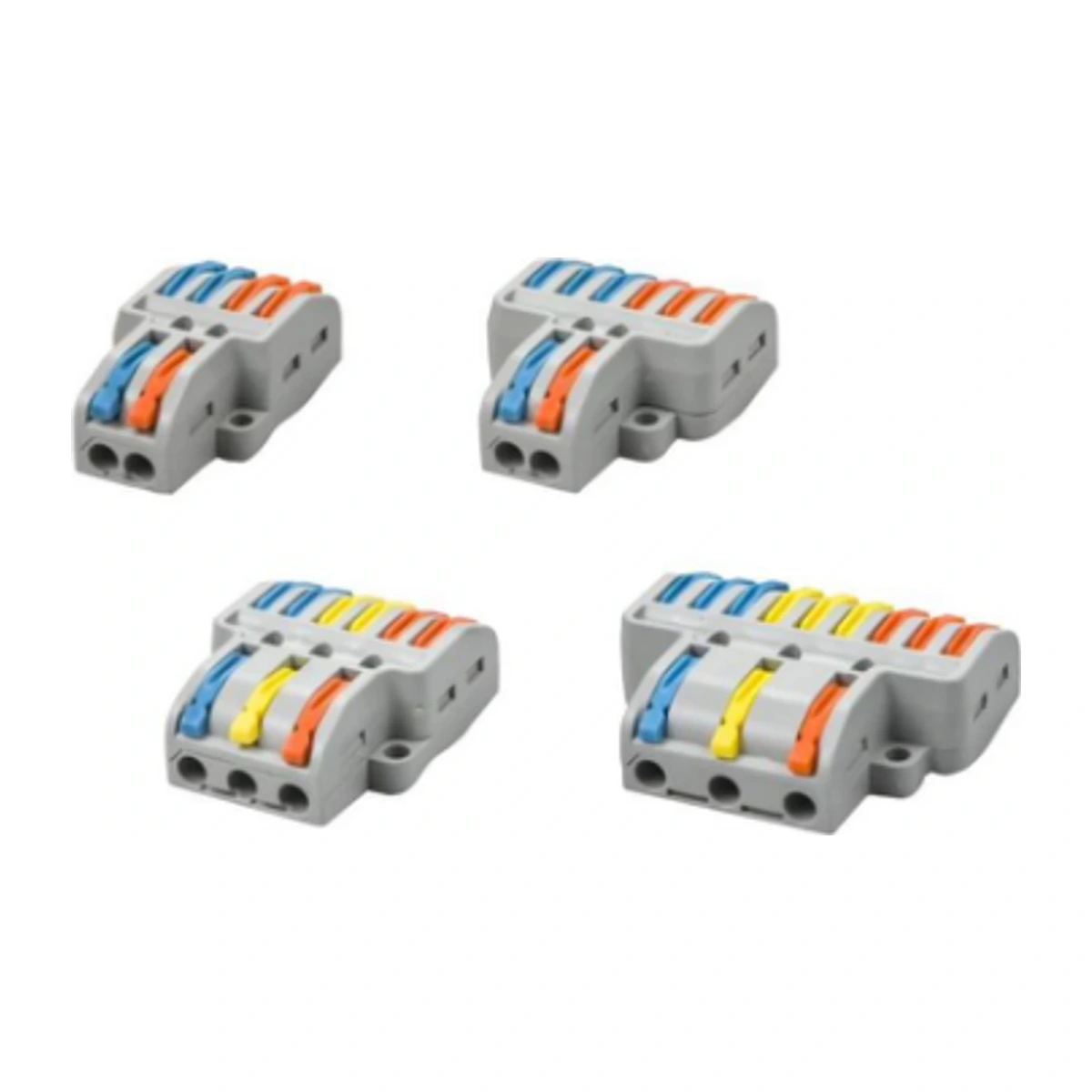

PCT-42 · 62 · 63 · 93
400V · 32A · PC UL94 V-2 flame-retardant

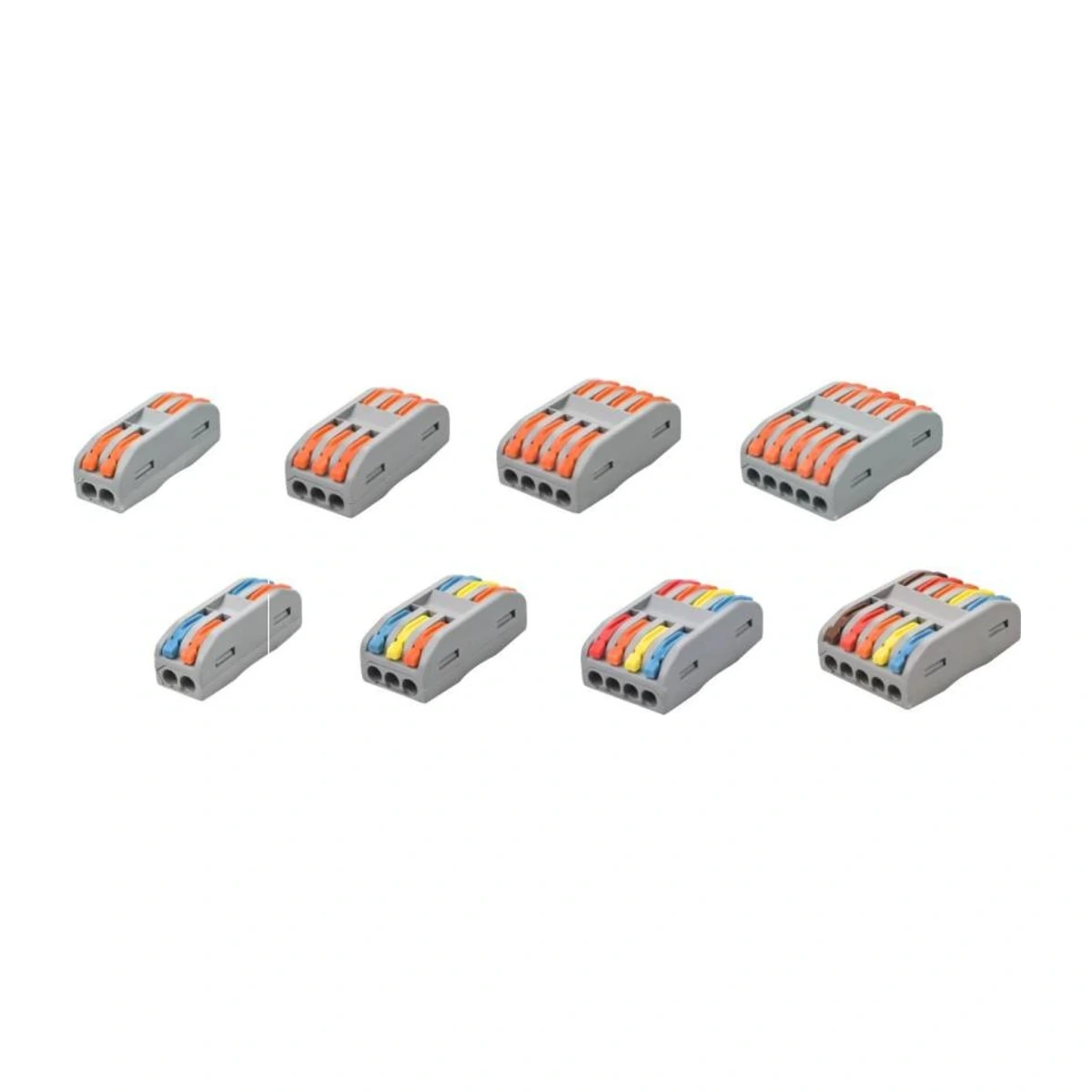

Standard and C-type configurations
400V · 32A · PC UL94 V-2 flame-retardant

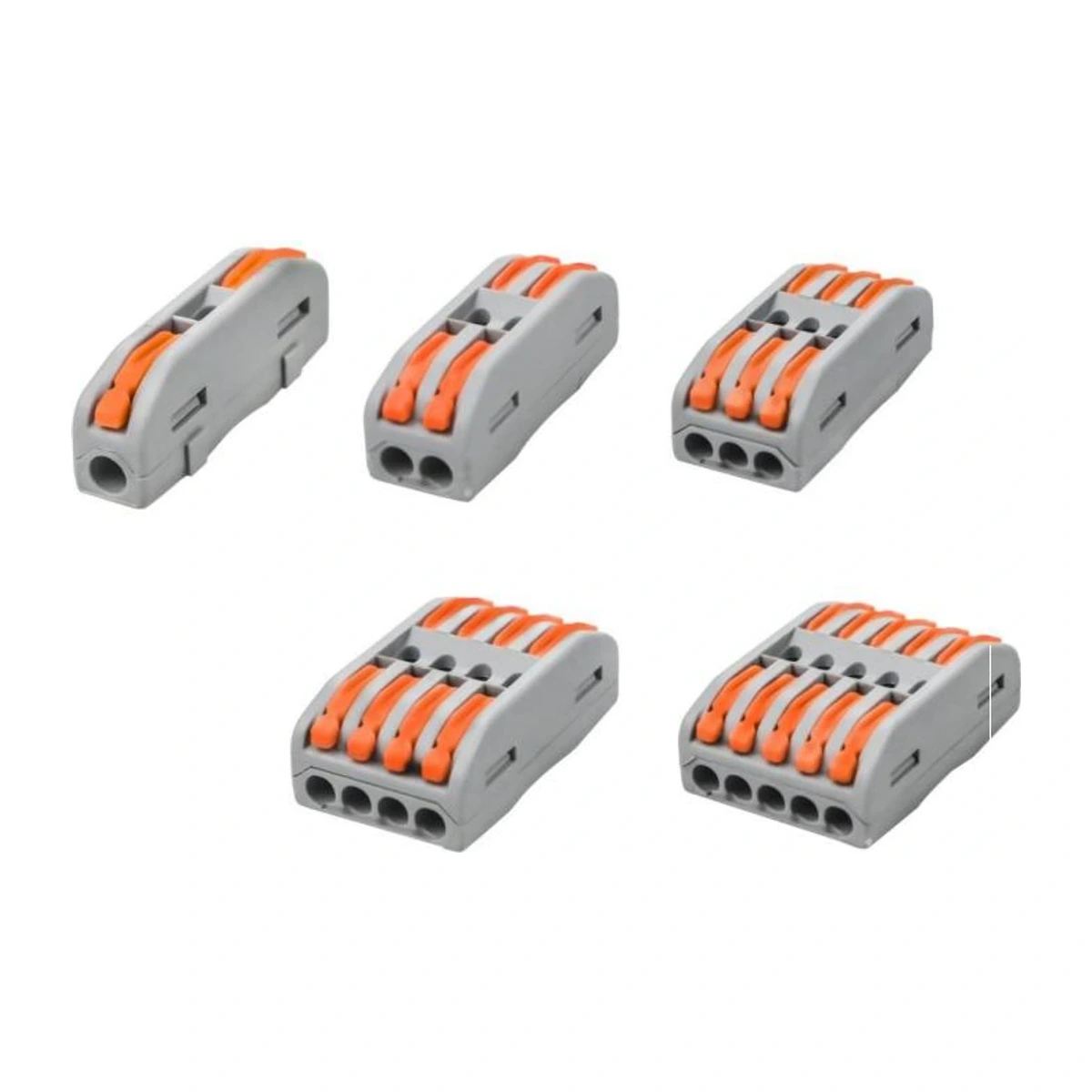

PCT-211 through PCT-255C test-port series
400V · 32A · PC UL94 V-2 flame-retardant
Mounting-base and mounting-hole series
400V · 32A · PC UL94 V-2 flame-retardant
Orange · Yellow · Blue · T-type
250V · 32A · PC UL94 V-2 flame-retardant

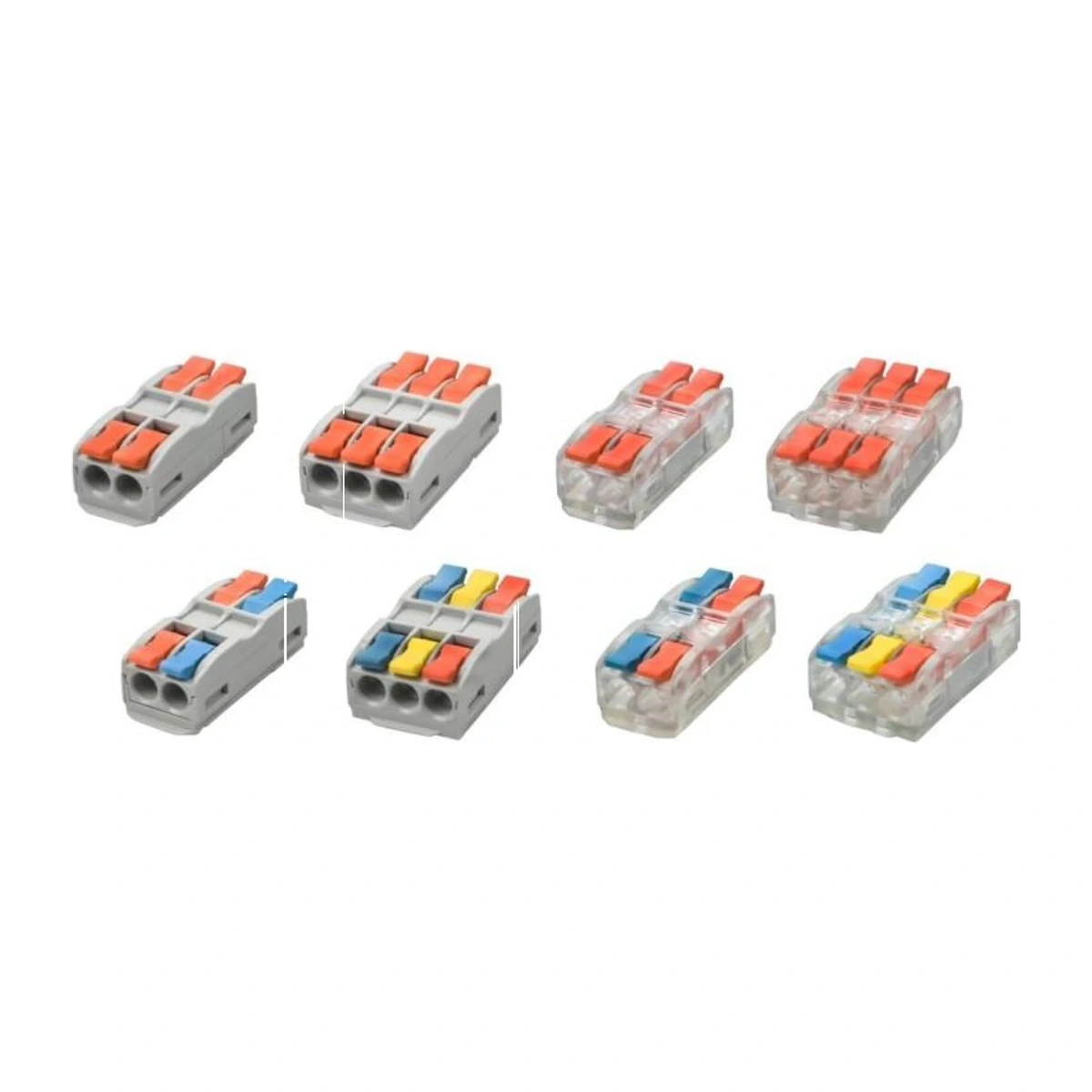

Standard, C-type, T-type and mounting-hole
250V · 32A · PC UL94 V-2 flame-retardant

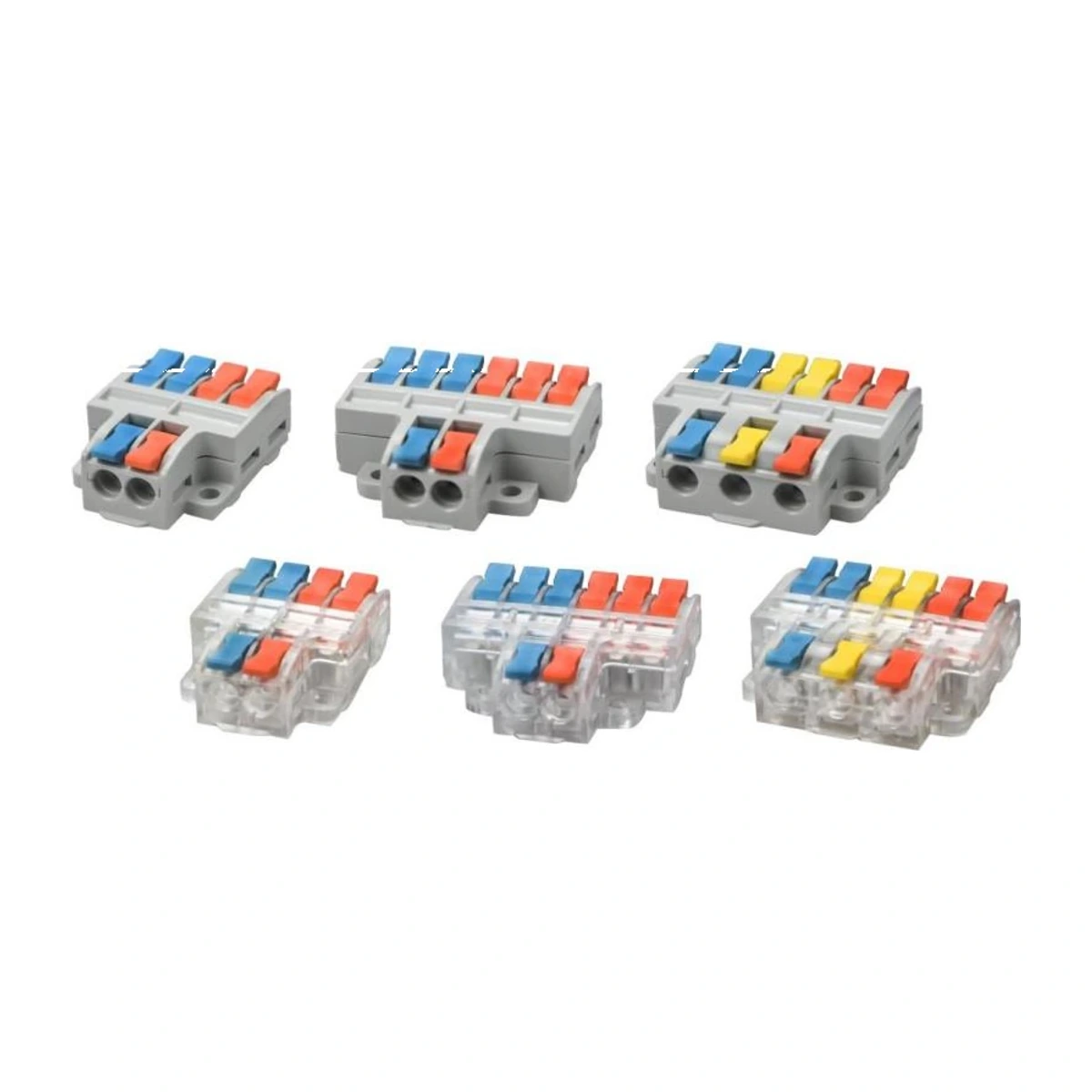

LC-442 through LC-493 connector range
250V · 32A · PC UL94 V-2 flame-retardant

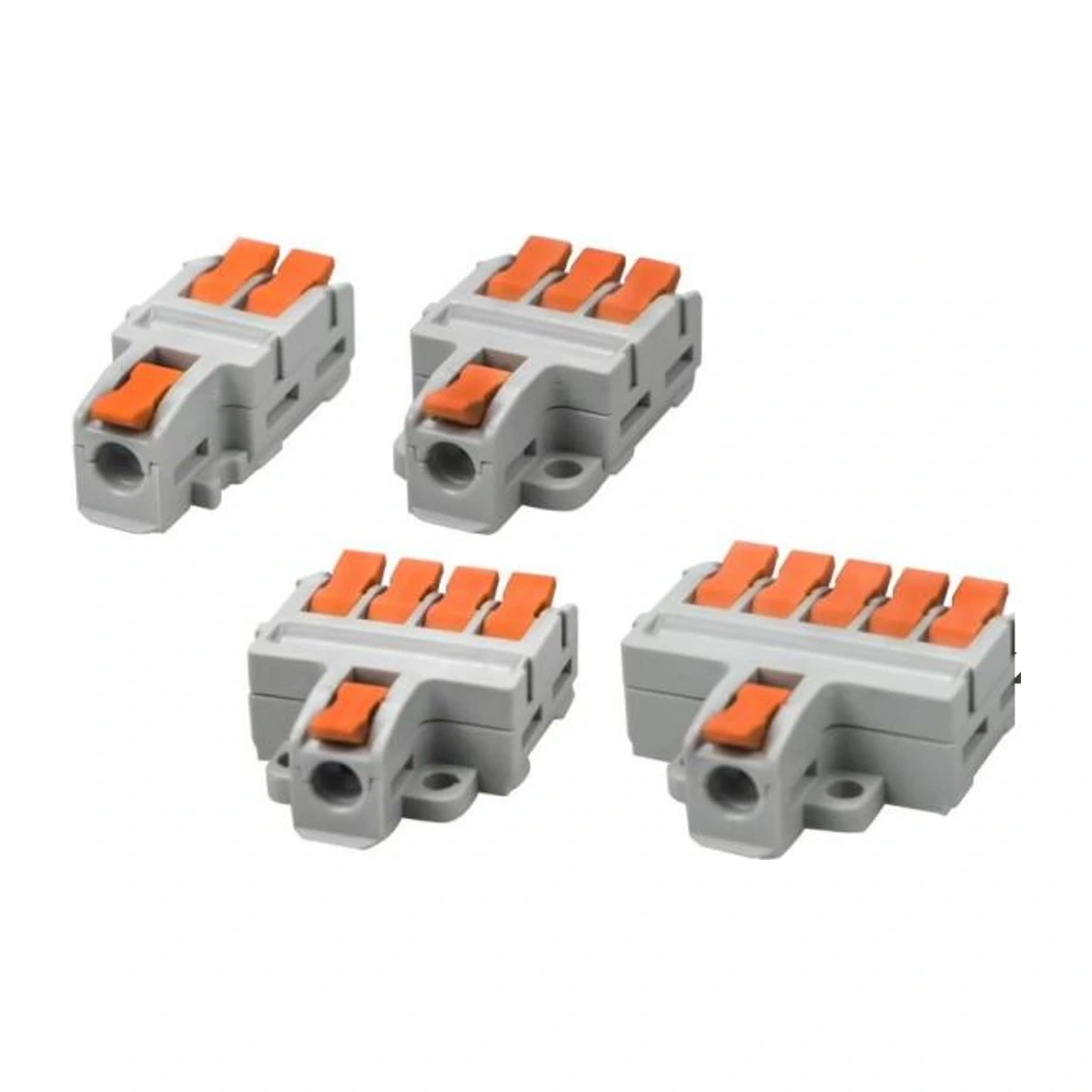

LC-12 · LC-13 · LC-14 · LC-15
250V · 32A · PC UL94 V-2 flame-retardant

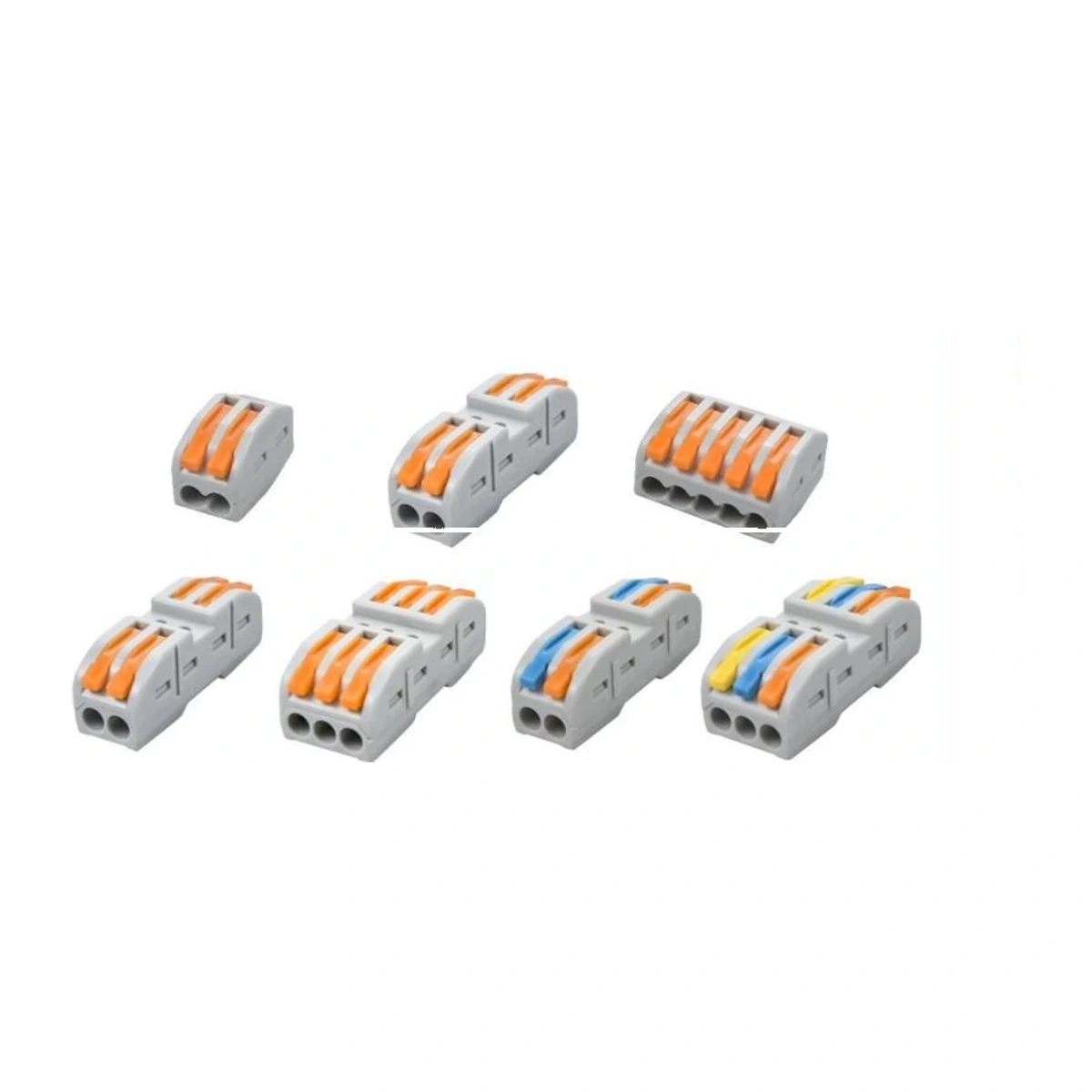

222-612 through 222-633C
450V · 41A · PC UL94 V-2 flame-retardant

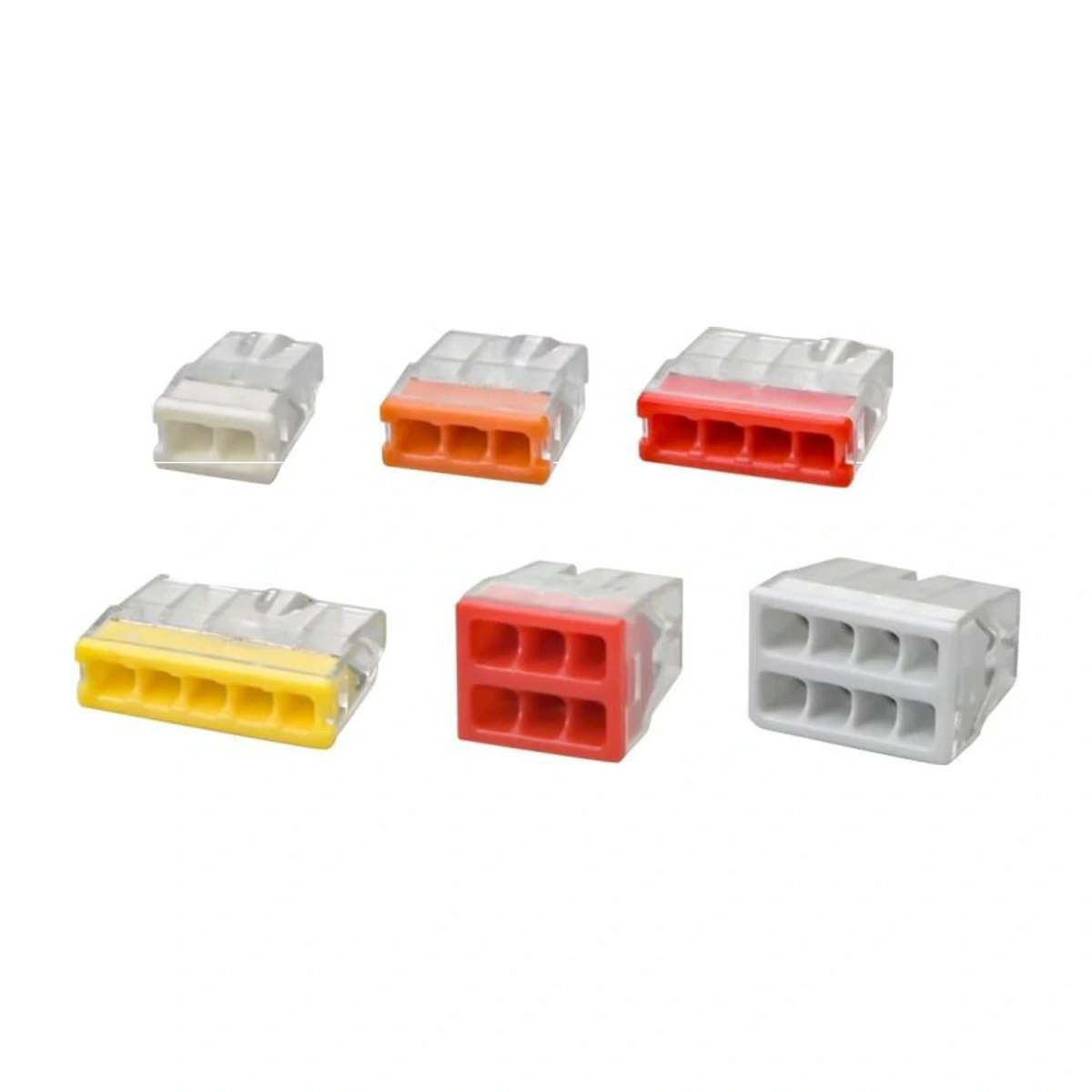

2P · 3P · 4P · 5P · 6P · 8P
400V · 24A · PC UL94 V-2 flame-retardant

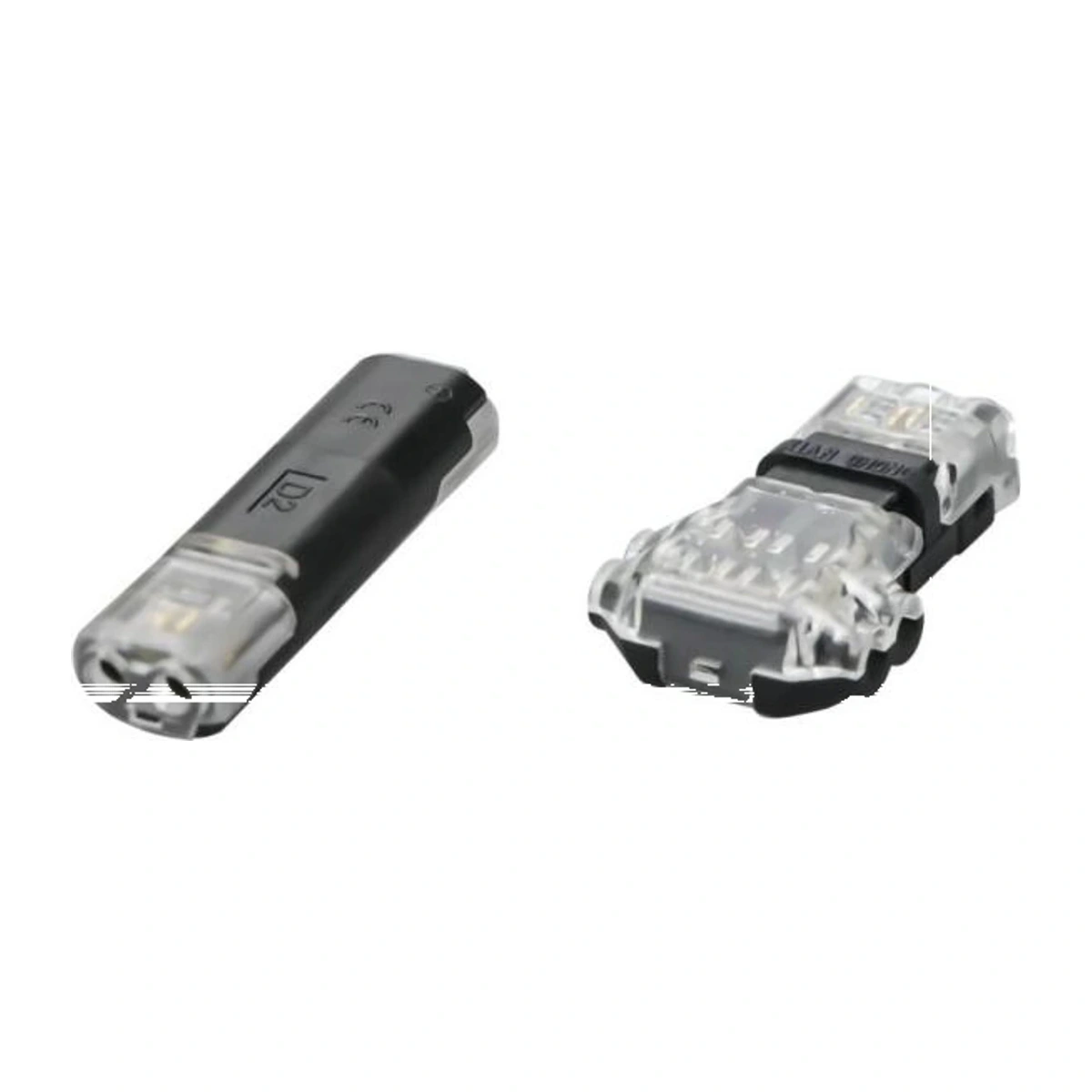

D2 · T2 · D2 combination
PC UL94 V-2 flame-retardantModels, product names and electrical values below are transcribed from the customer-provided product directory.
| Models | Product family | Rated voltage | Rated current | Connection | Wire range |
|---|---|---|---|---|---|
| PCT-212, PCT-213, PCT-214, PCT-215, PCT-218 | PCT Series Quick Wire Connector | 400V | 32A | Push-in / lever | Wire range 0.08~4.0mm² (solid)/0.08~2.5mm² (flexible), strip length 10mm |
| PCT-412, PCT-413, PCT-414, PCT-415, PCT-418 | PCT Series Quick Wire Connector | 450V | 32A | Push-in / lever | Wire range 0.2~4.0mm² (solid)/0.2~2.5mm² (flexible), strip length 11mm |
| PCT-42, PCT-62, PCT-63, PCT-93 | PCT Series Quick Wire Connector | 400V | 32A | Push-in / lever | Wire range 0.08~4.0mm² (solid)/0.08~4.0mm² (flexible), strip length 10mm |
| PCT-222, PCT-233, PCT-244, PCT-255, PCT-222C, PCT-233C, PCT-244C, PCT-255C | PCT Series Quick Wire Connector | 400V | 32A | Push-in / lever | Wire range 0.08~4.0mm² (solid)/0.08~4.0mm² (flexible), strip length 10mm |
| PCT-211 test-port, PCT-222 test-port, PCT-233 test-port, PCT-244 test-port, PCT-255 test-port, PCT-222C test-port, PCT-233C test-port, PCT-244C test-port, PCT-255C test-port | PCT Series Quick Wire Connector | 400V | 32A | Push-in / lever | Wire range 0.08~4.0mm² (solid)/0.08~4.0mm² (flexible), strip length 10mm |
| PCT-211 mounting-base, PCT-222 mounting-hole, PCT-233 mounting-base, PCT-244 mounting-base, PCT-255 mounting-base | PCT Series Quick Wire Connector | 400V | 32A | Push-in / lever | Wire range 0.08~4.0mm² (solid)/0.08~4.0mm² (flexible), strip length 10mm |
| LC-411 orange, LC-411 yellow, LC-411 blue, LC-411T orange, LC-411T yellow, LC-411T blue | LC Series Quick Wire Connector | 250V | 32A | Lever (T type) / push-in | Wire range 0.08~4.0mm² (solid)/0.08~2.5mm² (flexible), strip length 11mm |
| LC-422, LC-433, LC-422T, LC-433T, LC-422C, LC-433C, LC-422TC, LC-433TC, LC-444 mounting-hole, LC-455 mounting-hole, LC-422C mounting-hole, LC-433C mounting-hole, LC-444C mounting-hole, LC-455C mounting-hole | LC Series Quick Wire Connector | 250V | 32A | Lever (T type) / push-in | Wire range 0.08~4.0mm² (solid)/0.08~2.5mm² (flexible), strip length 11mm |
| LC-442, LC-462, LC-463, LC-442T, LC-462T, LC-463T, LC-482, LC-484, LC-493, LC-482T, LC-484T, LC-493T | LC Series Quick Wire Connector | 250V | 32A | Lever (T type) / push-in | Wire range 0.08~4.0mm² (solid)/0.08~2.5mm² (flexible), strip length 11mm |
| LC-12, LC-13, LC-14, LC-15 | LC Series Quick Wire Connector | 250V | 32A | Lever / push-in | Wire range 0.08~4.0mm² (solid)/0.08~2.5mm² (flexible), strip length 11mm |
| 222-612, 222-613, 222-615, 222-622, 222-633, 222-622C, 222-633C | LC Series Quick Wire Connector (222) | 450V | 41A | Lever / push-in | Wire range 0.5~6mm², strip length 11mm |
| 2273-2P, 2273-3P, 2273-4P, 2273-5P, 2273-6P, 2273-8P | 2273 Series Push Wire Connector | 400V | 24A | Push-wire | strip length 11mm |
| D2, T2, D2 combination | Butt Connector Series (D2/T2) | By model | By model | Push-in / butt connection |
