SD13–SD28 and LD12–LD32 thermoplastic threaded connector families, shown with the exact series data and product images supplied by the customer.
1~7 pins · AC 250/380V · 5~25A
IP68 and above
2~9 pins · AC 250/380V · 5~10A
IP68 and above
1~14 pins · AC 250/380V · 5~45A
IP68 and above
2~26 pins · AC 250/380V · 5~45A
IP68 and above
2 pins · AC 250V · 5A
IP68 and above
2~4 pins · AC 250V · 5~20A
IP68 and above
2~7 pins · AC 250V · 5~25A
IP68 and above
2~9 pins · AC 380V · 5~45A
IP68 and above
2~9 pins · AC 250V · 10~45A
IP68 and above
3~11 pins · AC 380V · 10~45A
IP68 and aboveCore selection fields from the latest submitted waterproof connector catalog. Use the series range below to identify a starting point for engineering review.
| Series | Pins | Rated voltage | Rated current | Submitted IP rating | Conductor range |
|---|---|---|---|---|---|

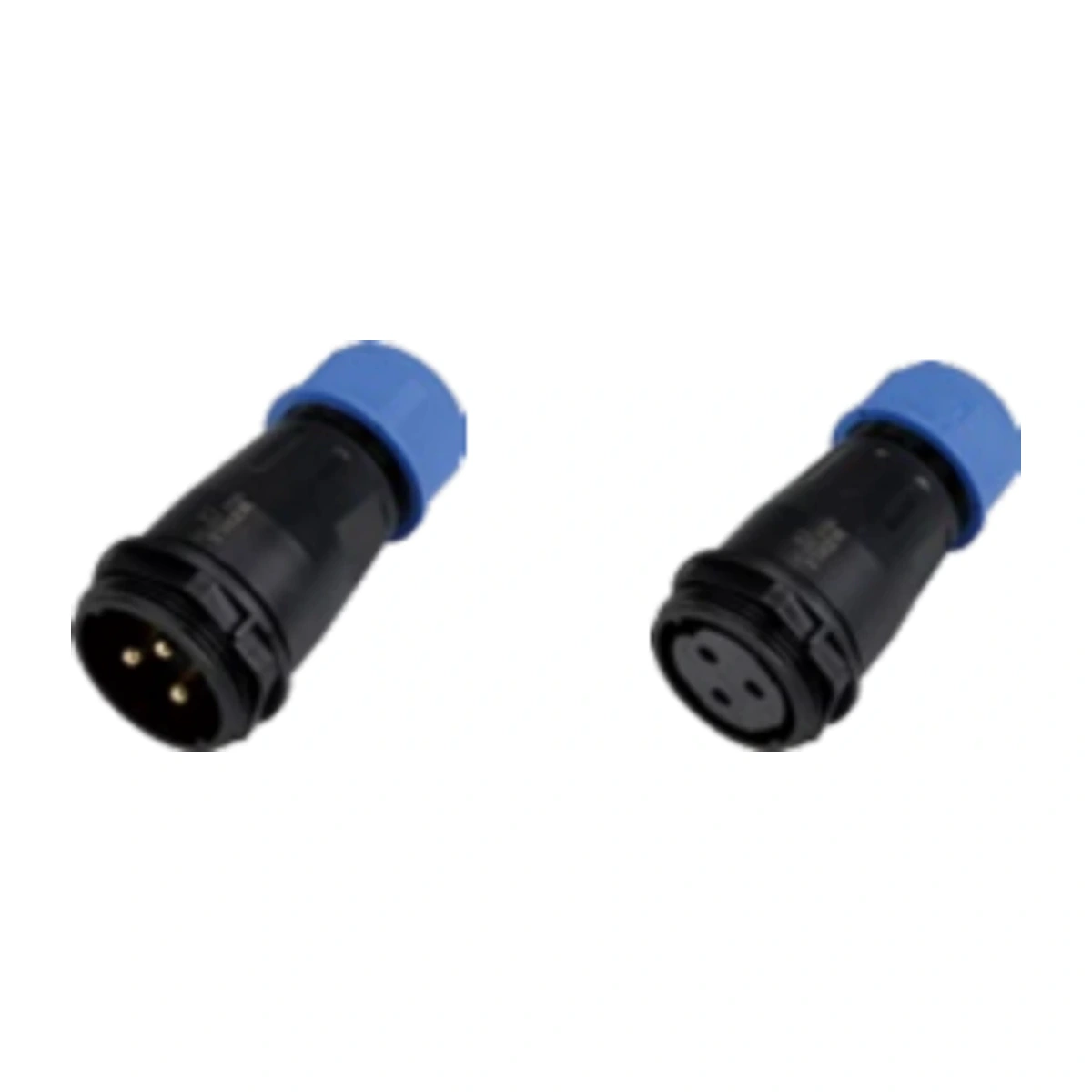

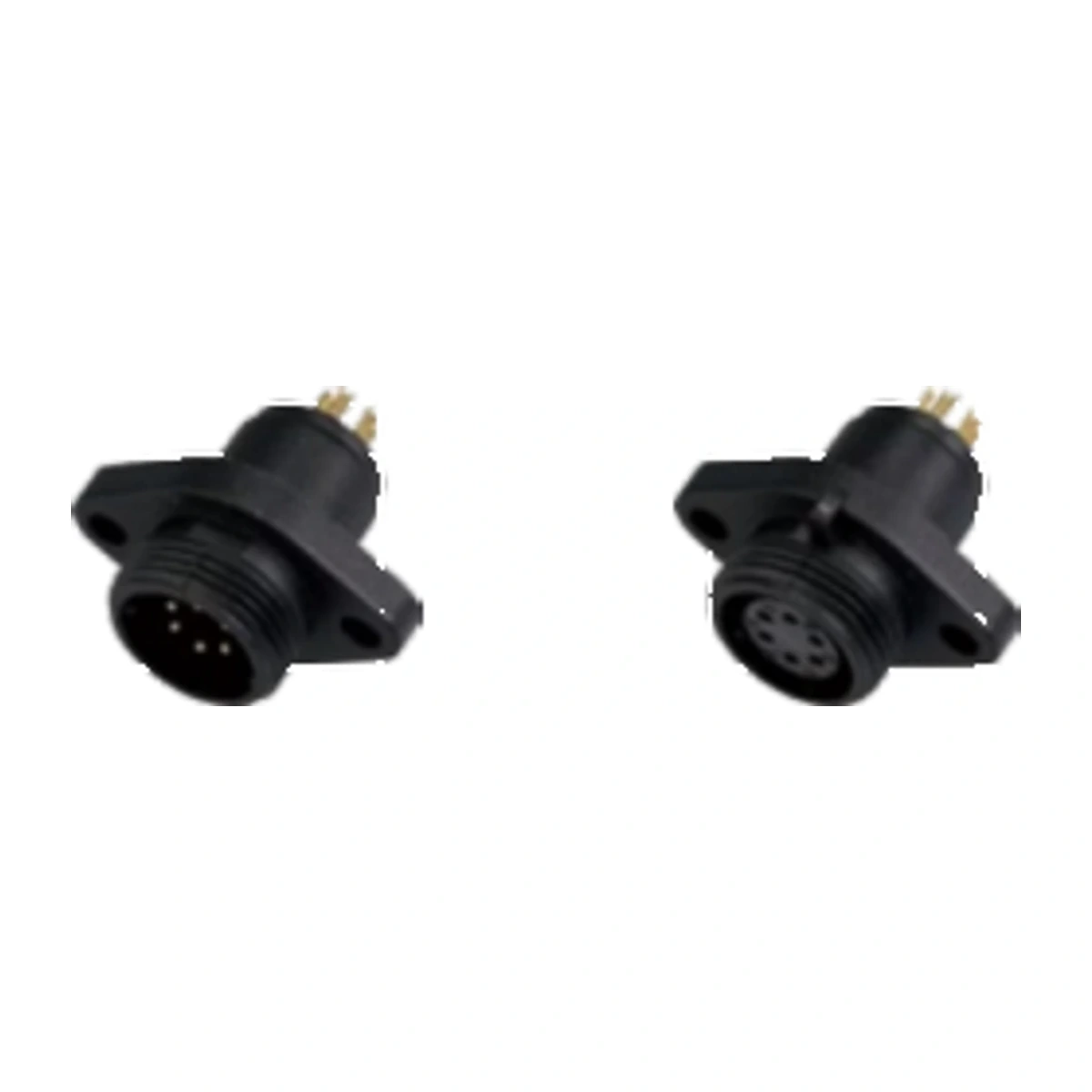

| SD13 | 1-7 | AC 250 / 380 V | 5-25 A | IP68 and above | Up to 0.75-4 mm² |

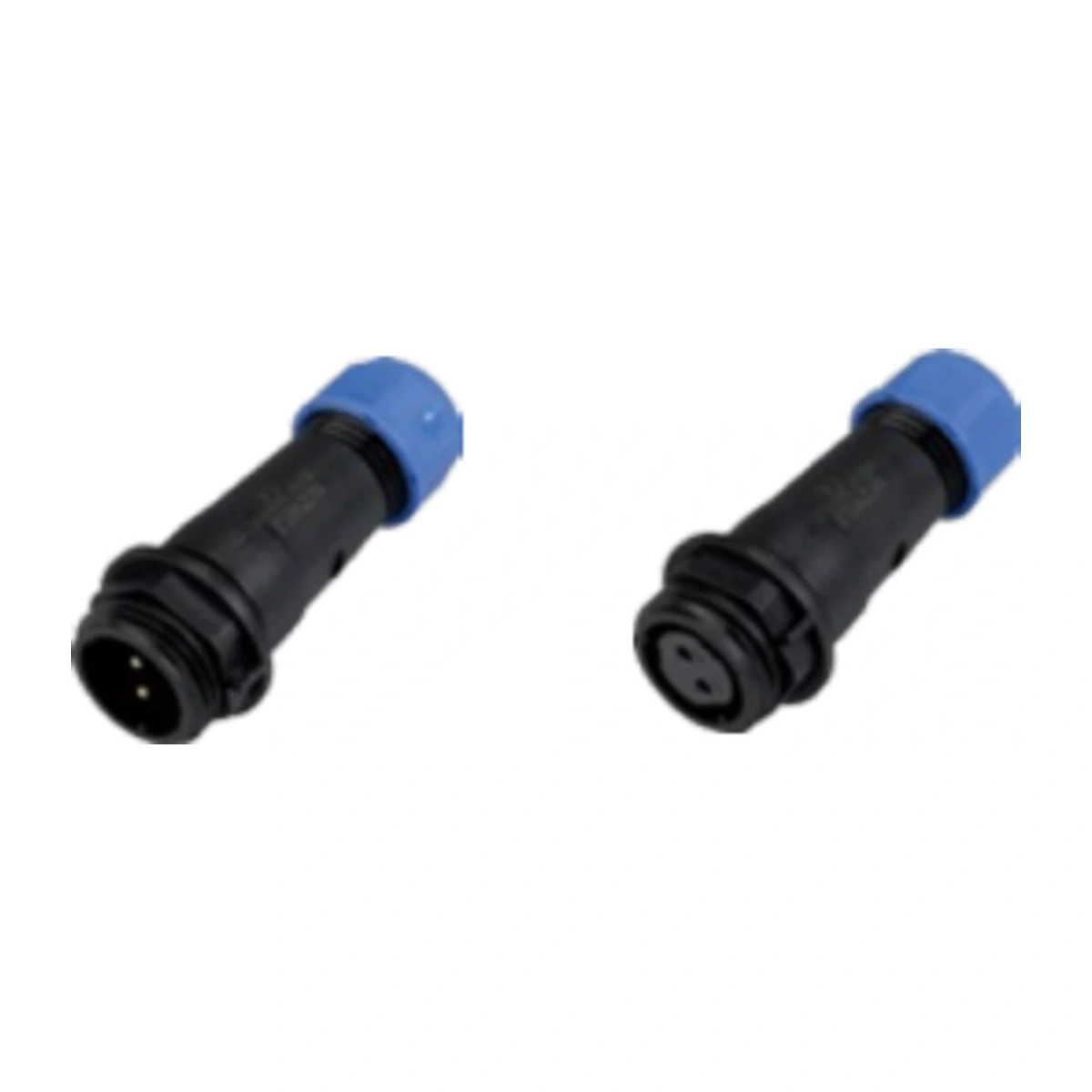

| SD16 | 2-9 | AC 250 / 380 V | 5-10 A | IP68 and above | Up to 0.75-1.5 mm² |

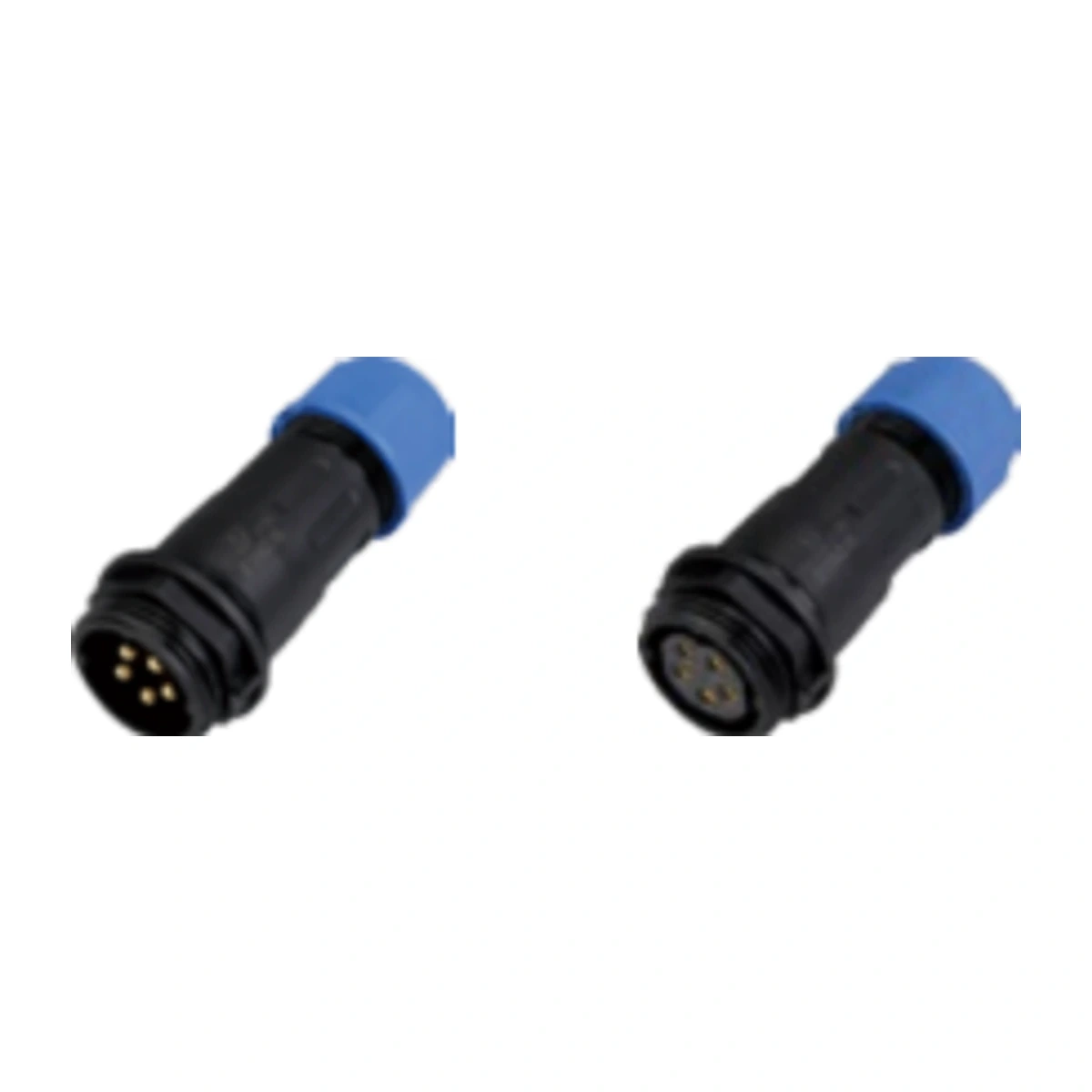

| SD20 | 1-14 | AC 250 / 380 V | 5-45 A | IP68 and above | Up to 0.75-6 mm² |
| SD28 | 2-26 | AC 250 / 380 V | 5-45 A | IP68 and above | Up to 0.75-6 mm² |

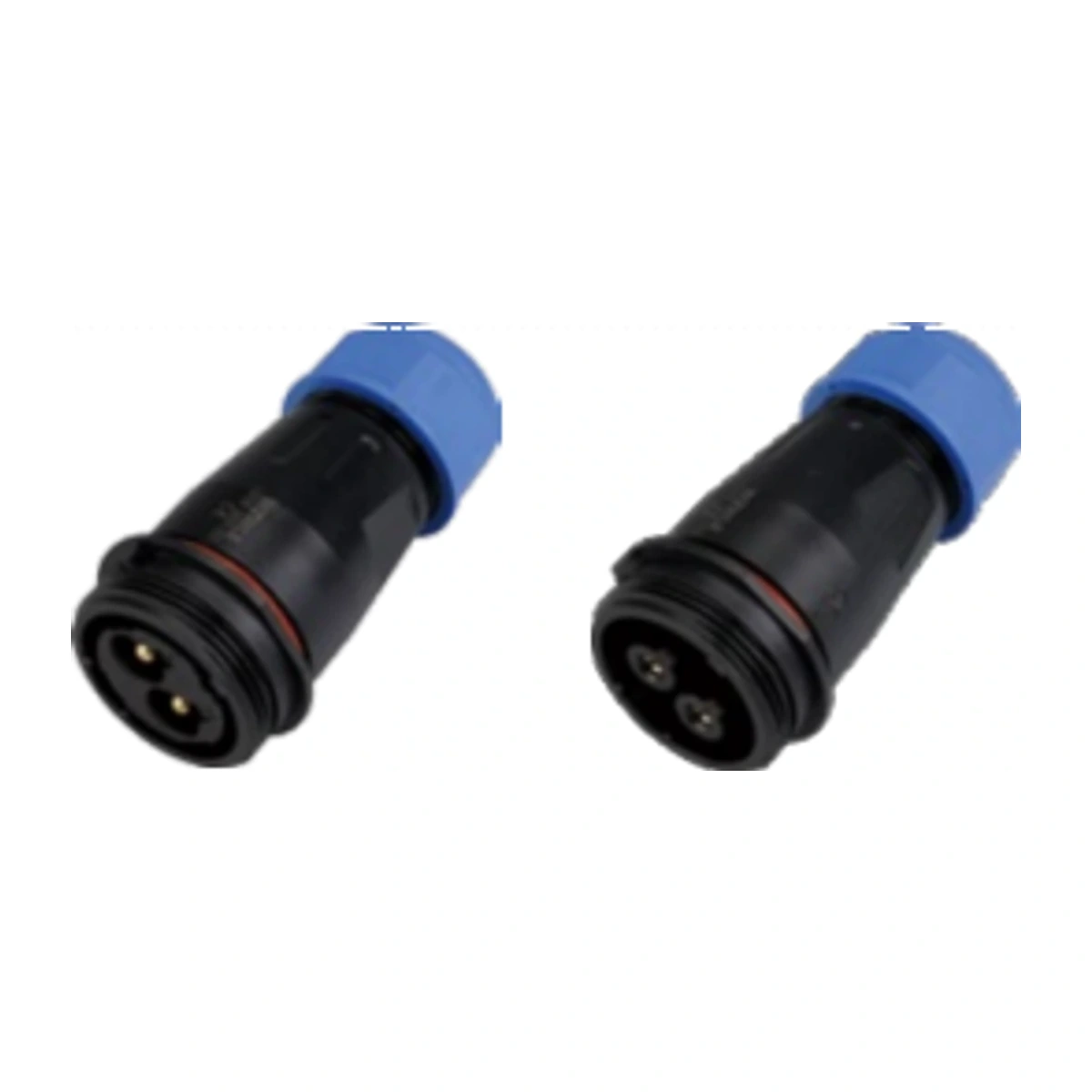

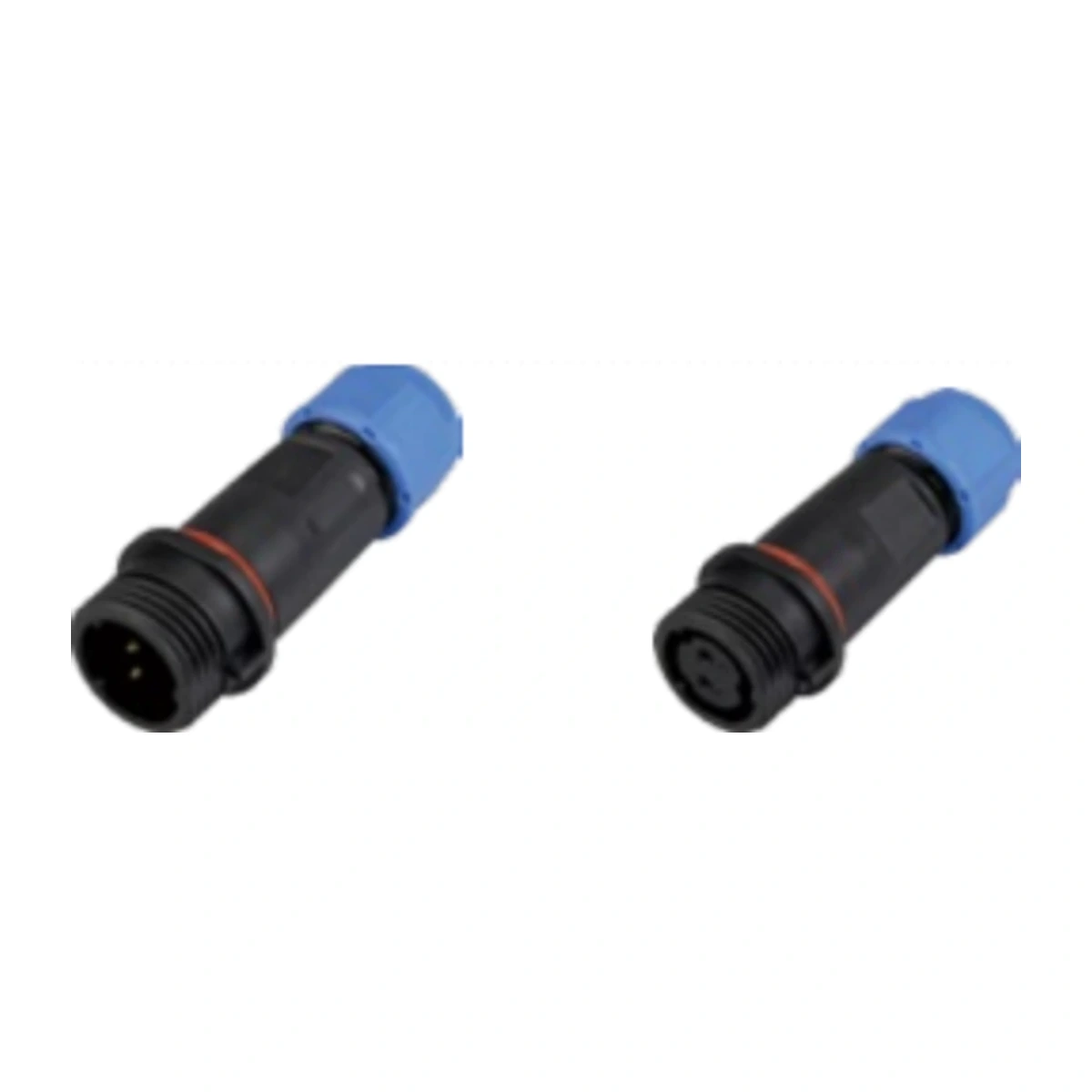

| LD12 | 2 | AC 250 V | 5 A | IP68 and above | Up to 2 mm² |

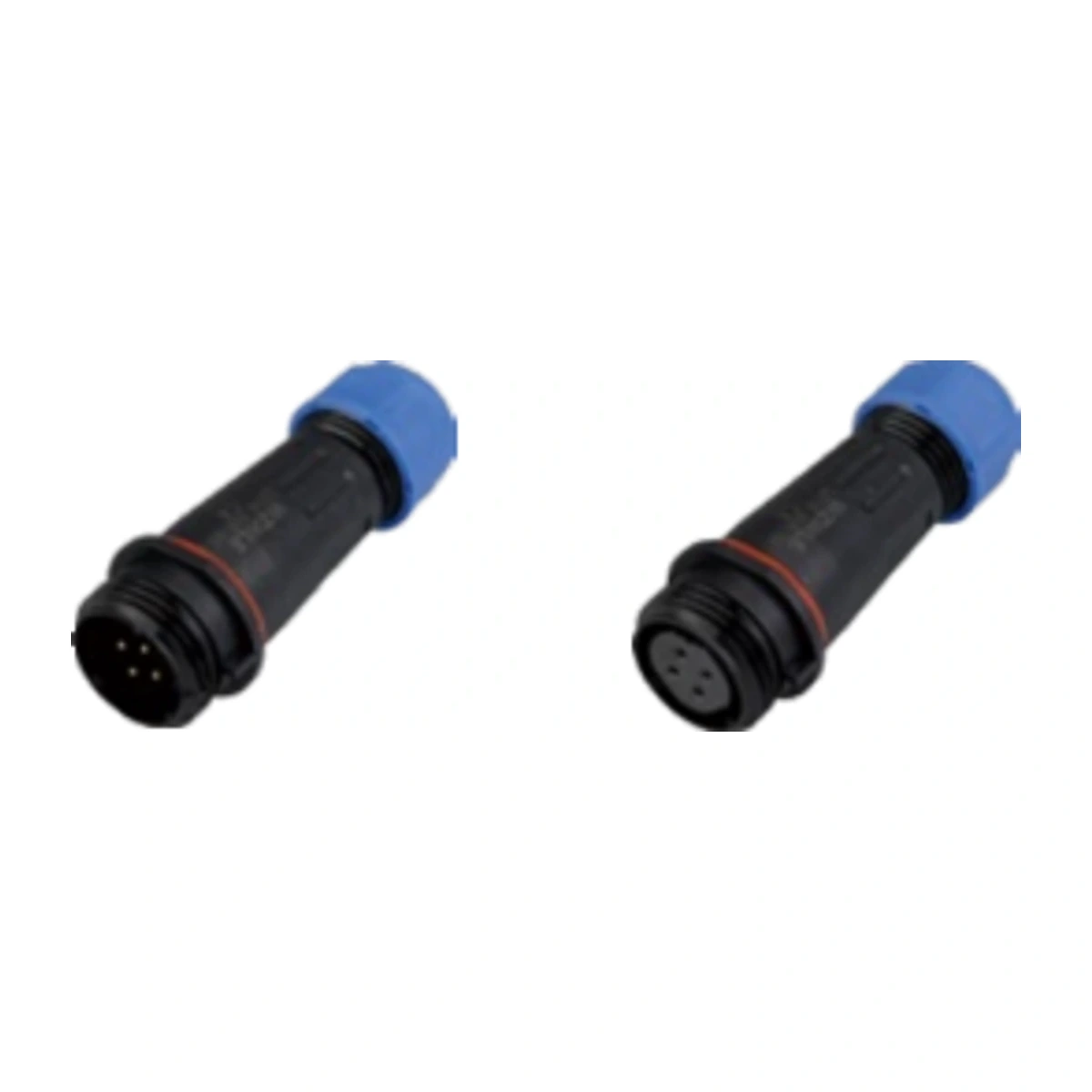

| LD16 | 2-4 | AC 250 V | 5-20 A | IP68 and above | Up to 2-3 mm² |

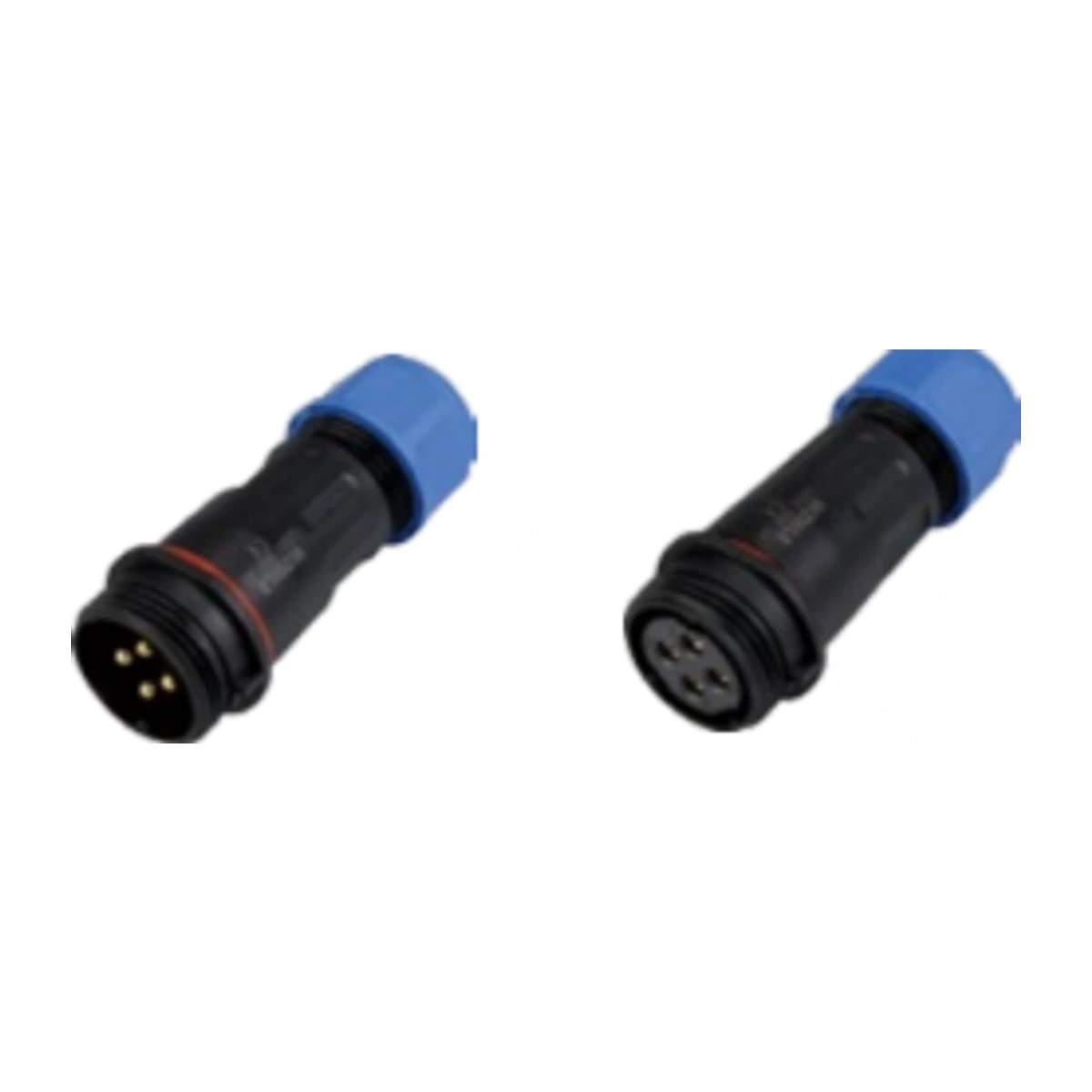

| LD20 | 2-7 | AC 250 V | 5-25 A | IP68 and above | Up to 1.5-4 mm² |

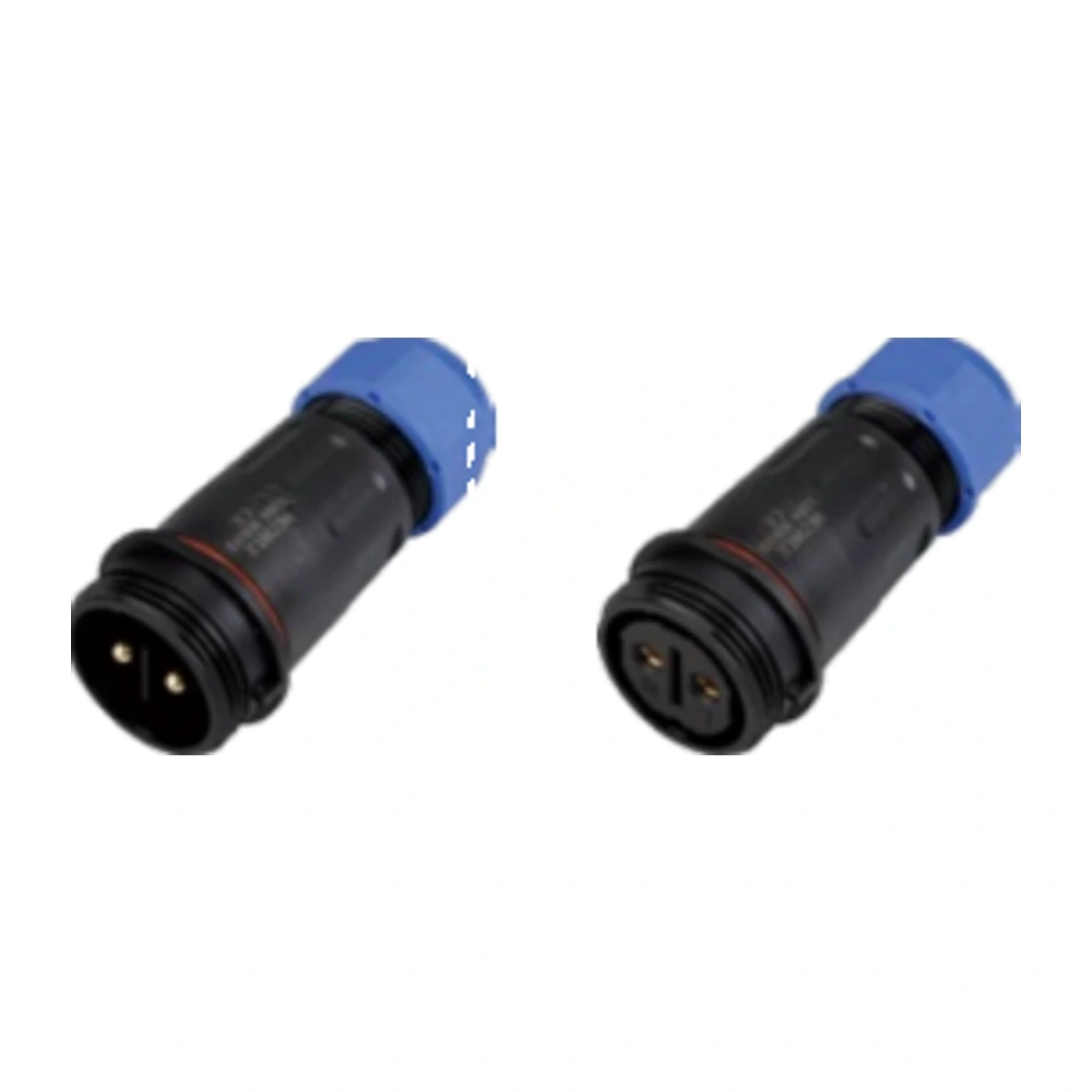

| LD24 | 2-9 | AC 380 V | 5-45 A | IP68 and above | Up to 1.5-6 mm² |
| LD28 | 2-9 | AC 250 V | 10-45 A | IP68 and above | Up to 2.5-6 mm² |

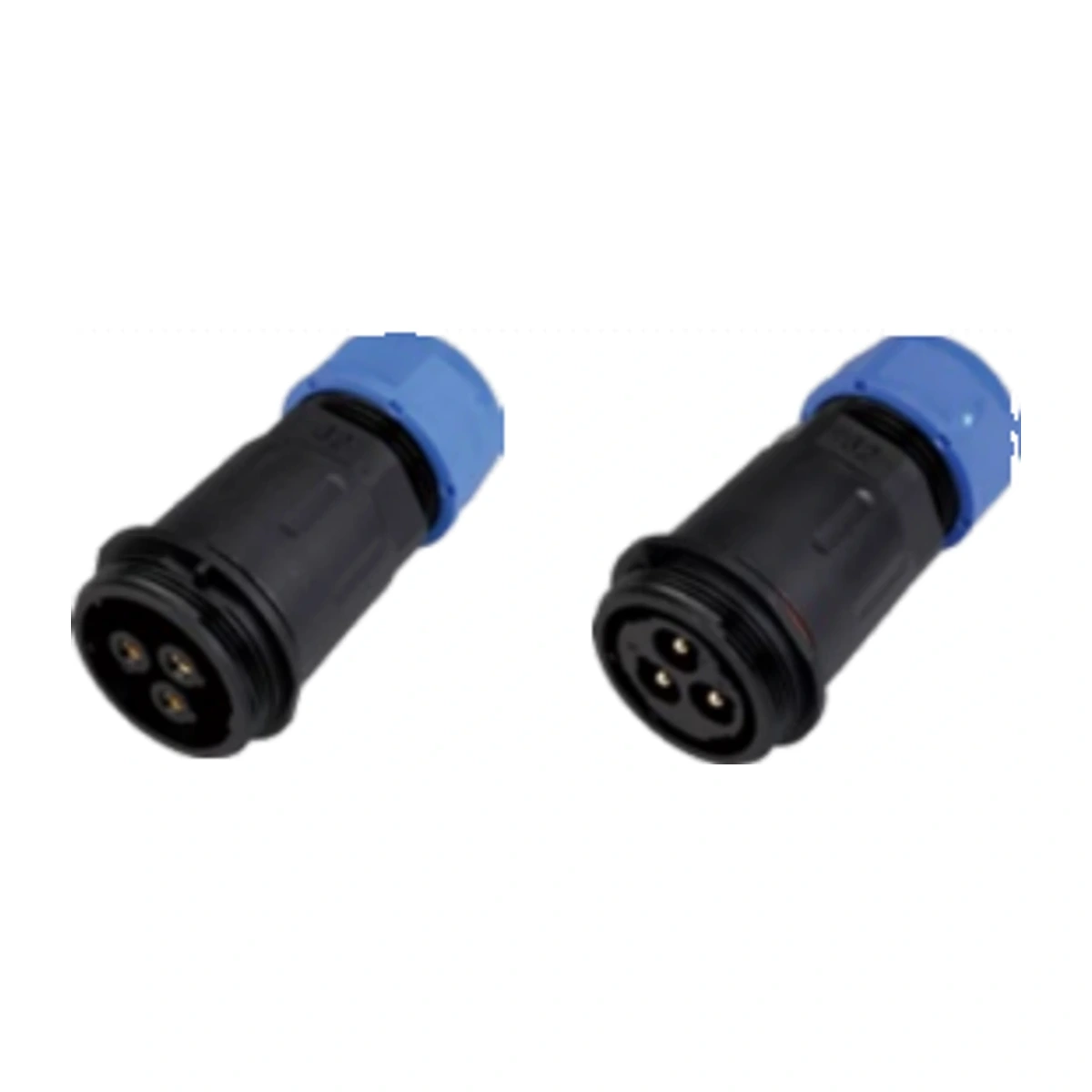

| LD32 | 3-11 | AC 380 V | 10-45 A | IP68 and above | Up to 2.5-6 mm² |
Values above are from the submitted catalog. Final contact layout, cable fit, production source and certificate scope are confirmed by exact model before quotation.
Request series selectionSupplied workshop, packaged-product and loading materials document the connector order flow beyond the product rendering.
Assembly-space, packed-goods and loading clips from the supplied connector materials.
Product series, protection rating, contact layout, certification and the applicable production partner are confirmed before order.
