LD12 Series

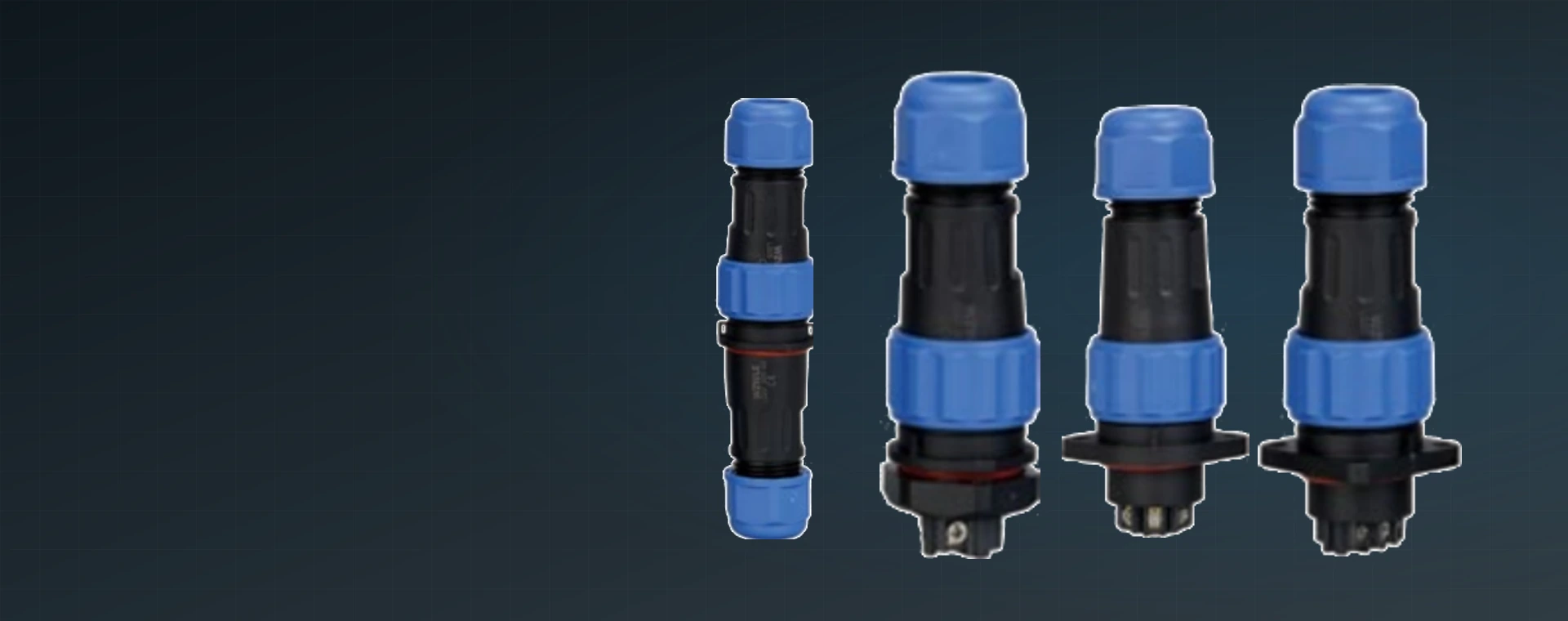

LD12 Series Waterproof Circular Connector
LD12 Series Waterproof Circular Connector, model group LD12 Series, rated AC 250V at 5A. Outdoor lighting, marine, new-energy vehicle, automation and communications equipment in demanding environments
- Model group
- LD12 Series
- Rated voltage
- AC 250V
- Rated current
- 5A
- Ingress protection
- IP68 and above
Product Overview
Catalog-matched product identity
LD12 Series Waterproof Circular Connector, model group LD12 Series, rated AC 250V at 5A. Outdoor lighting, marine, new-energy vehicle, automation and communications equipment in demanding environments
Technical Data
Customer catalog values
Model groupLD12 Series
Product nameLD12 Series Waterproof Circular Connector
Positions / pins2 pins
Rated voltageAC 250V
Rated current5A
Ingress protectionIP68 and above
Housing materialPA66 / PA6 thermoplastic; PPS insulator rated to 260°C
Locking / connectionThreaded locking
Cable / wire range≤2mm² (conductor range)
ConfigurationFemale receptacle plus male plug; configurations include ZM rear-nut, ZS 2-hole, ZG square 4-hole, ZP / TP straight and TA right-angle types
ApplicationOutdoor lighting, marine, new-energy vehicle, automation and communications equipment in demanding environments
Names, models and ratings are transcribed from the customer-supplied catalog. Final configuration follows the approved model and project schedule.
Applications
Application scope
Outdoor lightingmarinenew-energy vehicleautomation and communications equipment in demanding environments
