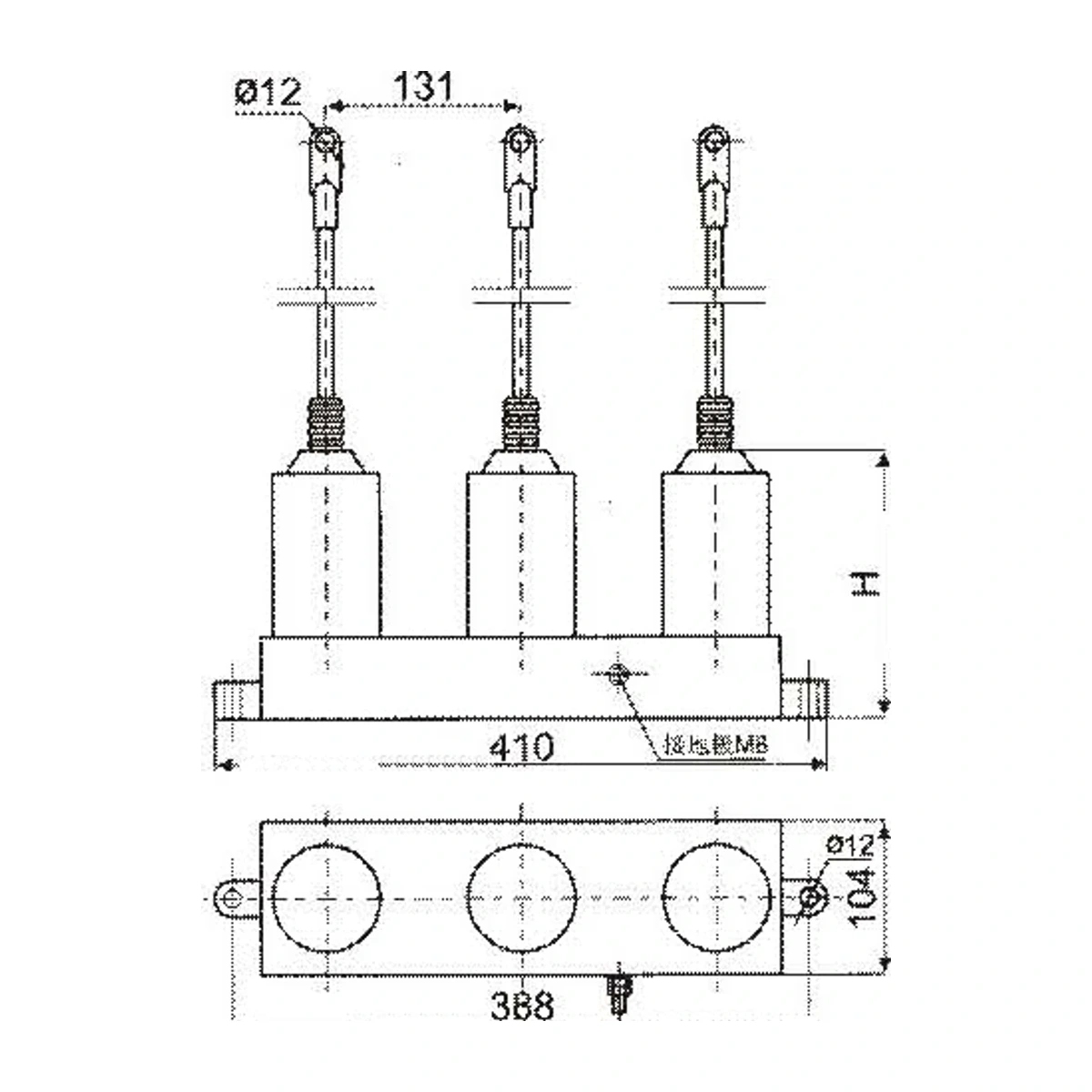

TBP-131 Combined Overvoltage Protector
Three-phase combined overvoltage protector with series gap for motor-side protection in systems up to 10 kV.
- Model series
- TBP-A-12.7F/131 Series
- Voltage class
- ≤10kV
- Continuous voltage
- 3.1~13.6 kV
- Discharge current
- 5 kA
Product Overview
Source-catalog configuration
The TBP-131 family combines three-phase overvoltage protection in a cabinet-mounted assembly for motor-side applications.
Technical Data
Submitted catalog values
Product lineThree-Phase Combined Overvoltage Protector (with Series Gap)
Chinese product line三相组合式过电压保护器 TBP-131型(柜内三联)
Model seriesTBP-A-12.7F/131 等20款
Voltage class≤10kV
Continuous operating voltage3.1~13.6 kV
Nominal discharge current5 kA
Protection level7.6~41 kV
Mounting户内柜内
Operating temperature-40℃~+40℃
Included modelsTBP-A-12.7F/131、TBP-A-3.8F/131、TBP-A-7.6F/131、TBP-B-12.7F/131、TBP-B-3.8F/131、TBP-B-7.6F/131、TBP-C-12.7F/131、TBP-C-3.8F/131、TBP-C-7.6F/131、TBP-A-10.5/131、TBP-A-3.15/131、TBP-A-6.3/131、TBP-B-10/131、TBP-B-3.15/131、TBP-B-6/131、TBP-C-10/131、TBP-C-3.15/131、TBP-C-6/131、TBP-A（B）-12.7/131、TBP-C-12.7/131 (共20款)
Values above are transcribed from the submitted workbook. The approved model code, drawing and compliance documents are confirmed before order.
Applications
Where this product fits
10 kV motor-side protectionIndoor switchgear cabinetsThree-phase overvoltage control
