ZR-B-10-12.0 and 7 variants · ≤10kV
ZR Series RC Absorber / Surge Suppressor (Substation General Type B)
ZR Series RC Absorber / Surge Suppressor (Substation General Type B), ZR-B-10-12.0 and 7 variants, for ≤10kV systems. Product identity and ratings follow the customer-supplied electrical catalog.
- Model series
- ZR-B-10-12.0 and 7 variants
- System voltage
- ≤10kV
- Installation
- Indoor switchgear cabinet
- Operating temperature
- -40℃~+40℃

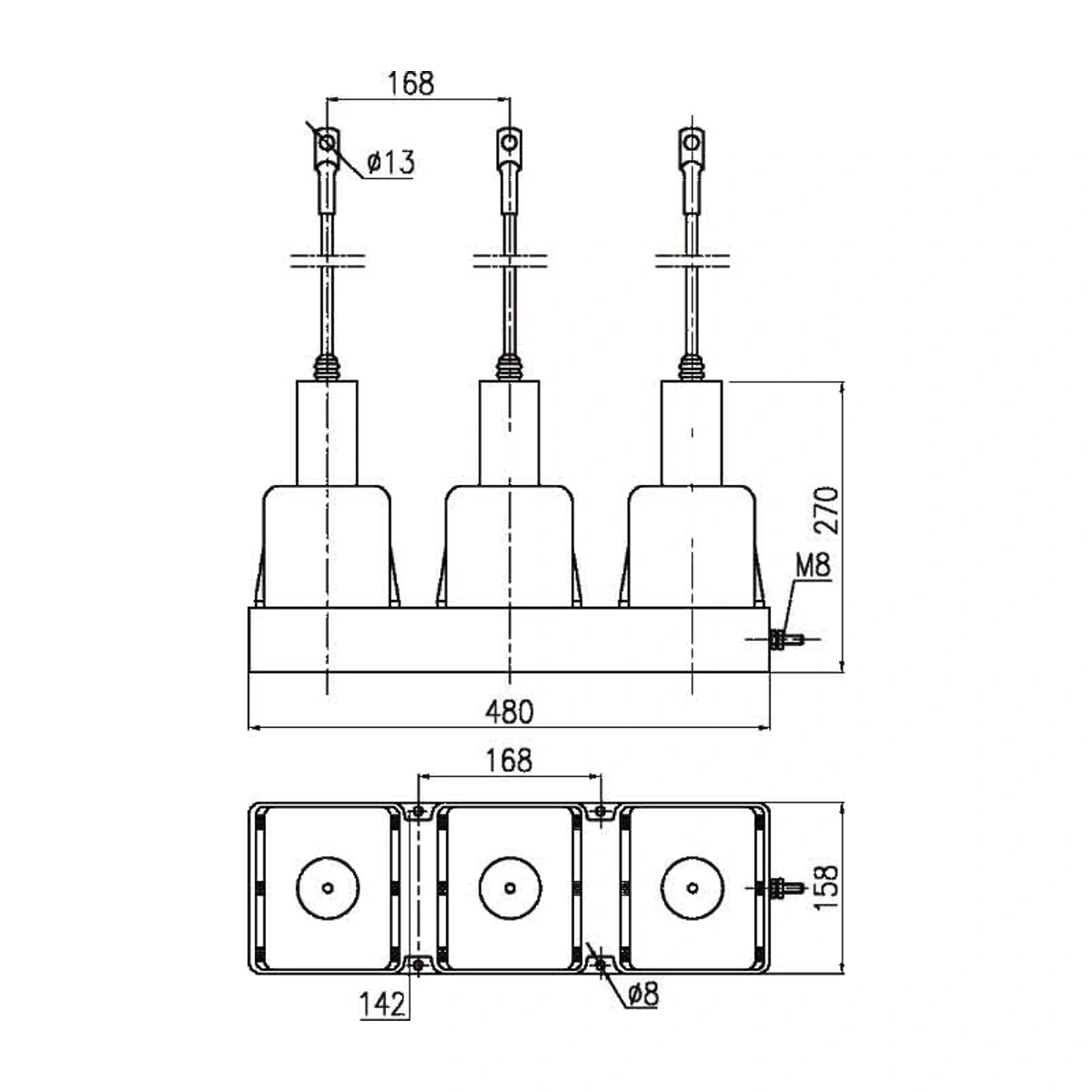

Product Overview
Catalog-matched product identity
ZR Series RC Absorber / Surge Suppressor (Substation General Type B), ZR-B-10-12.0 and 7 variants, for ≤10kV systems. Product identity and ratings follow the customer-supplied electrical catalog.
Technical Data
Customer catalog values
Product lineZR Series RC Absorber / Surge Suppressor (Substation General Type B)
Model seriesZR-B-10-12.0 and 7 variants
System voltage≤10kV
Continuous operating voltage3.6~12 kV
Nominal discharge current2.5 kA 5 kA
Protection level9.5~41 kV
InstallationIndoor switchgear cabinet
Operating temperature-40℃~+40℃
ApplicationSwitching overvoltage absorption for 10 kV vacuum switches (rated capacitance 0.1 μF; operating resistance 100-200 Ω)
Included modelsZR-B-10-12.0, ZR-B-3-3.6, ZR-B-6-7.2, ZR-A-10.5*-12.0, ZR-A-3.15*-3.6, ZR-A-6.3*-7.2, ZR-A-10-0.1/100 (7 variants total)
Names, models and ratings are transcribed from the customer-supplied catalog. Final configuration follows the approved model and project schedule.
Applications
Application scope
Switching overvoltage absorption for 10 kV vacuum switches (rated capacitance 0.1 μF; operating resistance 100-200 Ω)
