YH5WD-17/46.4DZ and 12 variants · ≤10kV
Three-Phase Combined Metal Oxide Surge Arrester (Generator Type)
Three-Phase Combined Metal Oxide Surge Arrester (Generator Type), YH5WD-17/46.4DZ and 12 variants, for ≤10kV systems. Product identity and ratings follow the customer-supplied electrical catalog.
- Model series
- YH5WD-17/46.4DZ and 12 variants
- System voltage
- ≤10kV
- Installation
- Indoor switchgear cabinet
- Operating temperature
- -40℃~+40℃
Product Overview
Catalog-matched product identity
Three-Phase Combined Metal Oxide Surge Arrester (Generator Type), YH5WD-17/46.4DZ and 12 variants, for ≤10kV systems. Product identity and ratings follow the customer-supplied electrical catalog.

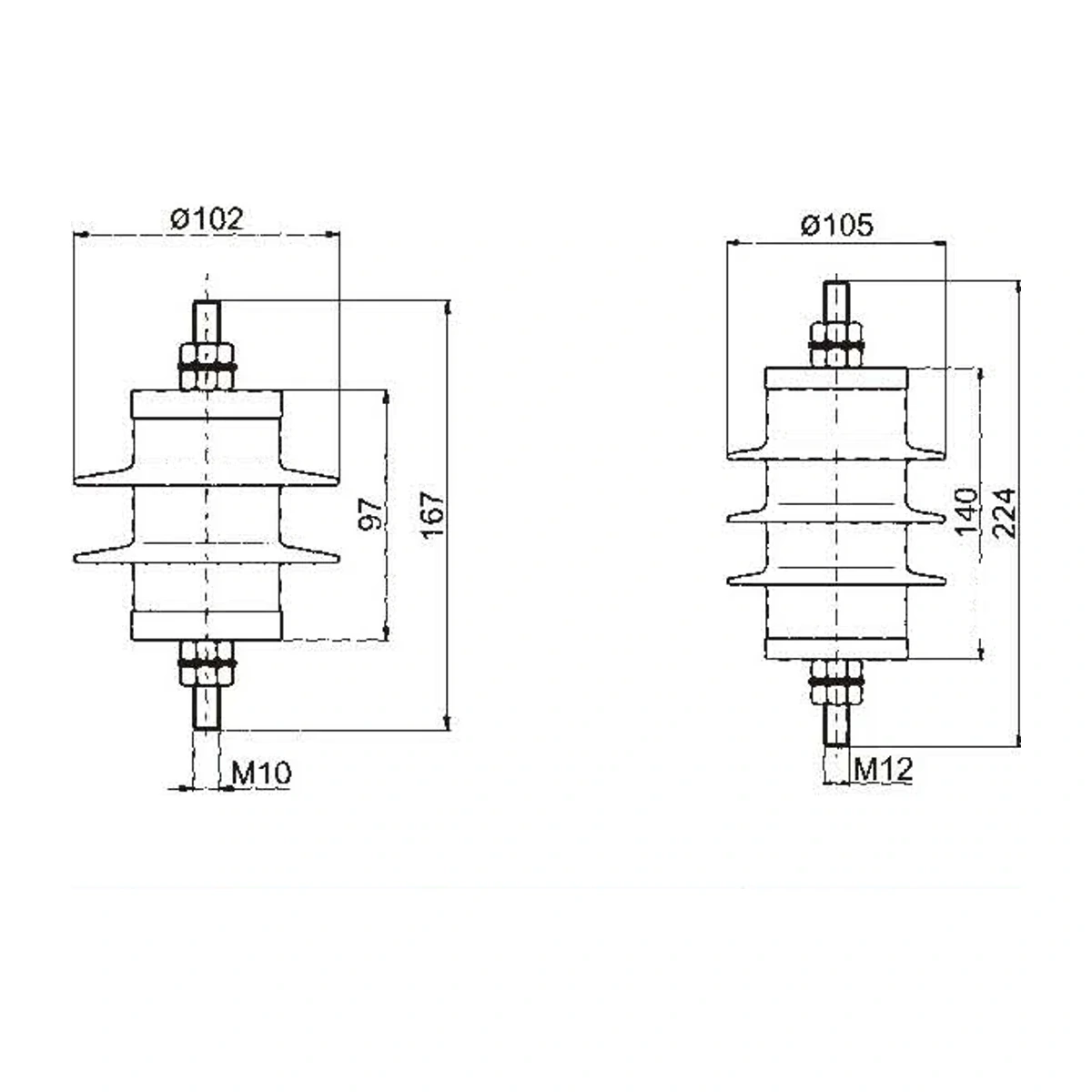

Technical Data
Customer catalog values
Product lineThree-Phase Combined Metal Oxide Surge Arrester (Generator Type)
Model seriesYH5WD-17/46.4DZ and 12 variants
System voltage≤10kV
Continuous operating voltage1.1~13.6 kV
Nominal discharge current2.5 kA, 5 kA
Protection level7.2~46.4 kV
InstallationIndoor switchgear cabinet
Operating temperature-40℃~+40℃
ApplicationLightning protection and grounded voltage-testing for insulated 10 kV overhead-line systems and distribution equipment
Included modelsYH5WD-17/46.4DZ, YH5WD-13.5/38x13.5/31, YH5WD-4/11.5x4/9.5, YH5WD-8/23.3x8/18.7, YH2.5WD-13.5/3.8x13.5/31, YH2.5WD-4/11.5x4/9.5, YH2.5WD-8/23x8/18.7, YH2.5WD-2.6/7.2, YH2.5WD-13.5/31, YH2.5WD-8/18.7, YH5WD-13.5/31, YH5WD-8/18.7 (12 variants total)
Names, models and ratings are transcribed from the customer-supplied catalog. Final configuration follows the approved model and project schedule.
Applications
Application scope
Lightning protection and grounded voltage-testing for insulated 10 kV overhead-line systems and distribution equipment
