YH5WX-51/134 and 2 variants · 35kV

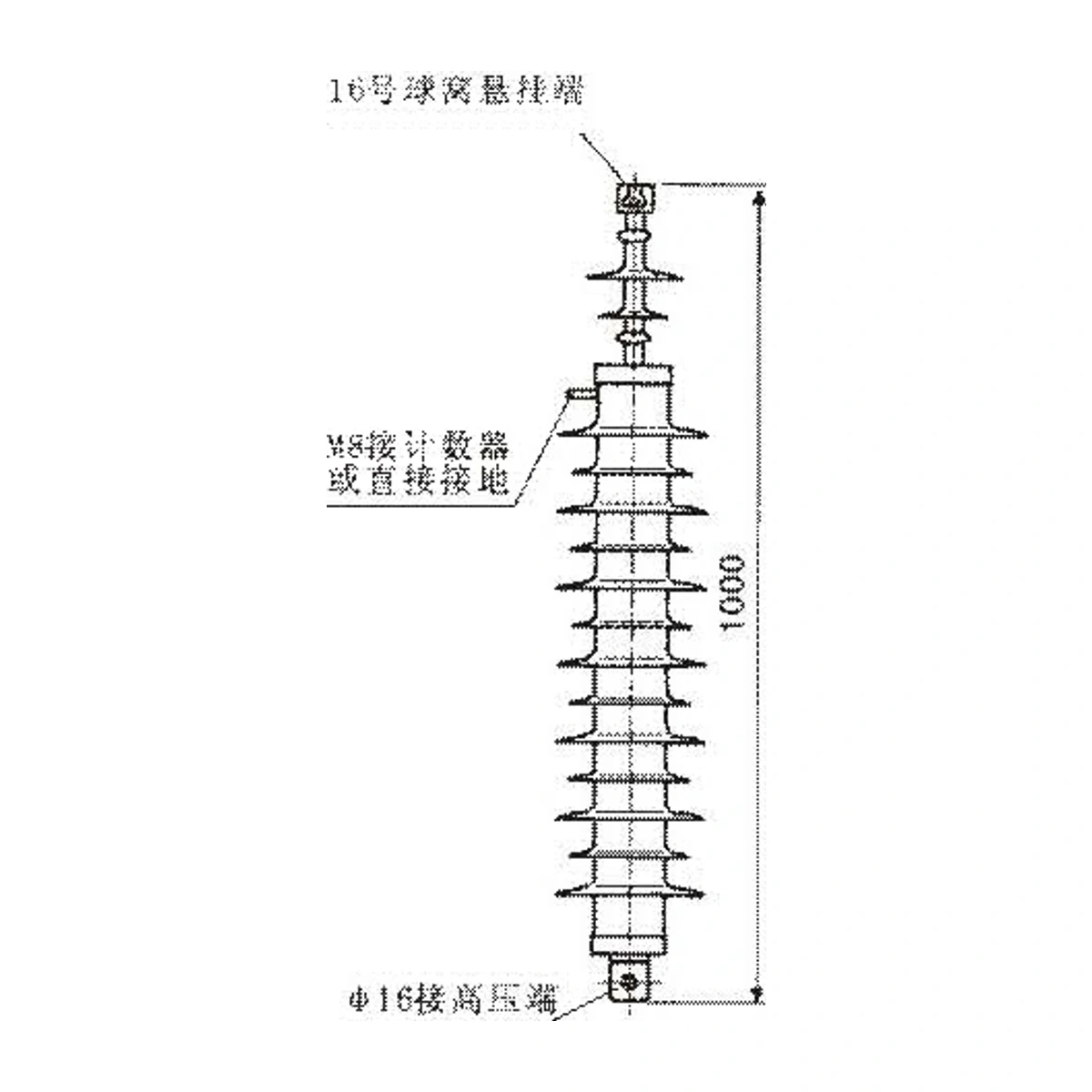

Composite Housing Metal Oxide Surge Arrester for Transmission Line
Composite Housing Metal Oxide Surge Arrester for Transmission Line, YH5WX-51/134 and 2 variants, for 35kV systems. Product identity and ratings follow the customer-supplied electrical catalog.
- Model series
- YH5WX-51/134 and 2 variants
- System voltage
- 35kV
- Installation
- Overhead-line suspension
- Operating temperature
- -40℃~+40℃
Product Overview
Catalog-matched product identity
Composite Housing Metal Oxide Surge Arrester for Transmission Line, YH5WX-51/134 and 2 variants, for 35kV systems. Product identity and ratings follow the customer-supplied electrical catalog.
Technical Data
Customer catalog values
Product lineComposite Housing Metal Oxide Surge Arrester for Transmission Line
Model seriesYH5WX-51/134 and 2 variants
System voltage35kV
Continuous operating voltage40.8~43.2 kV
Nominal discharge current5 kA
Protection level134~142 kV
InstallationOverhead-line suspension
Operating temperature-40℃~+40℃
ApplicationLightning protection for 35 kV overhead lines
Included modelsYH5WX-51/134, YH5WX-54/142 (2 variants total)
Names, models and ratings are transcribed from the customer-supplied catalog. Final configuration follows the approved model and project schedule.
Applications
Application scope
Lightning protection for 35 kV overhead lines
