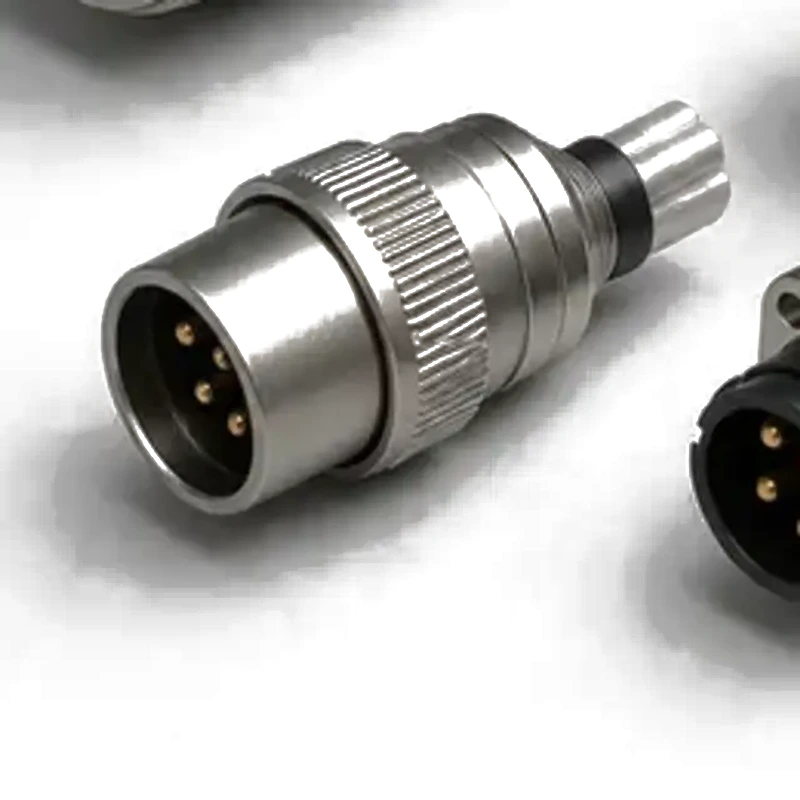

Aviation-Style Plug Connector
Threaded aviation-style connector for equipment, panel and wire-harness applications.
- Standard
- Series-specific interface configuration
- Construction
- Metal shell, threaded coupling and project-selected contacts
- Rating
- Contact count and electrical rating confirmed per drawing
- Protection
- Mechanical locking with optional environmental sealing
Product Overview
Technical selection starts with the application
Threaded aviation-style connector for equipment, panel and wire-harness applications. Final dimensions, materials, ratings, standards and test documentation are confirmed against the buyer specification before production.
Technical Data
Typical configuration
Model / seriesAviation-Style Plug Connector series; exact catalog code is confirmed with the selected rating, interface and construction.
Product familyAerospace & Waterproof Connectors
ReferenceSeries-specific interface configuration
ConstructionMetal shell, threaded coupling and project-selected contacts
RatingContact count and electrical rating confirmed per drawing
ProtectionMechanical locking with optional environmental sealing
CustomizationMarking, dimensions, accessories, packaging and documentation are reviewed per project.
Selection values are guidance only. The approved model code, drawing, test records and compliance documents are issued after technical confirmation.
Applications
Where this product fits
Equipment panelsWire harnessesIndustrial controls
