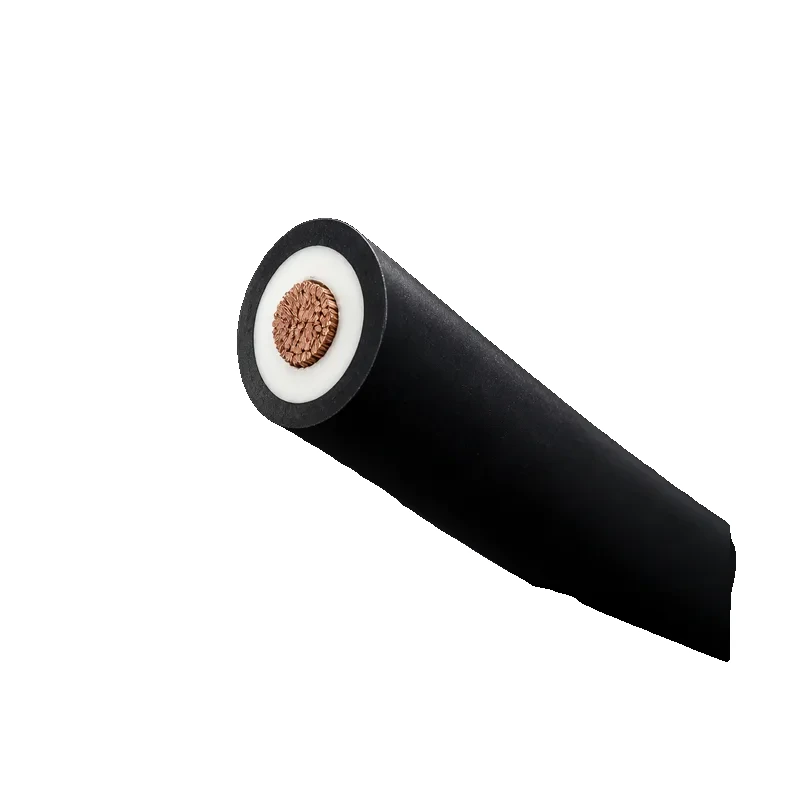

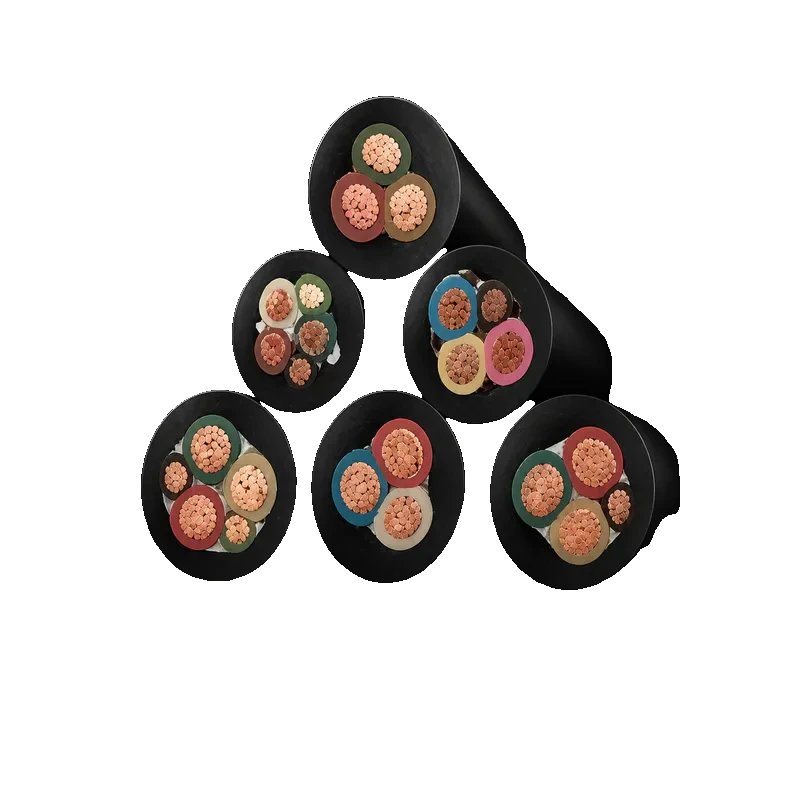

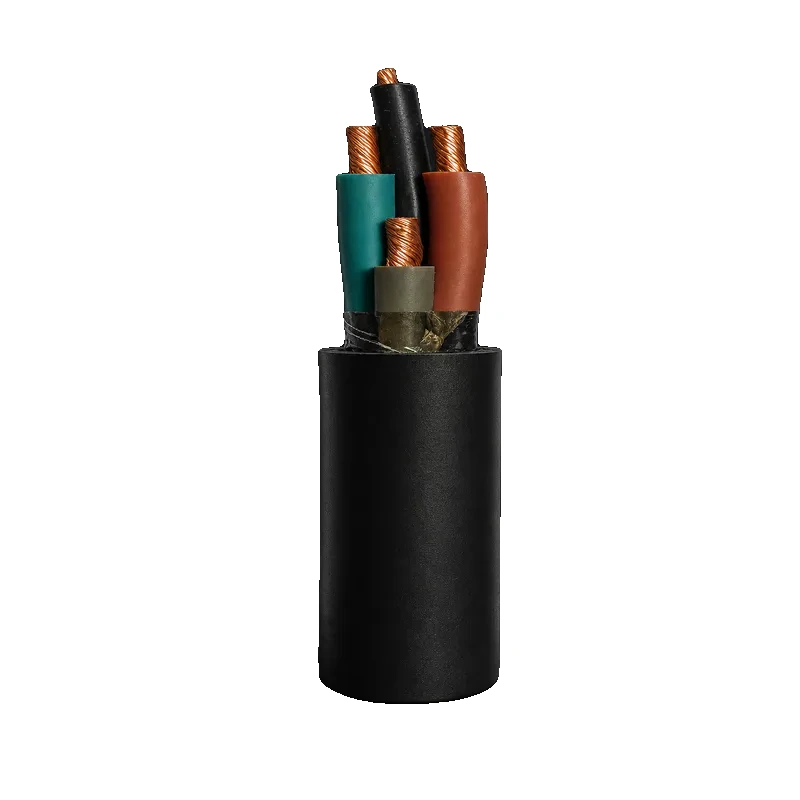

Rubber-Insulated Flexible Cable
Rubber-Insulated Flexible Cable and Cord
Rubber-Insulated Flexible Cable and Cord covers the YZ, YZW, YCW, YC, 60245IEC53, 60245IEC57, 60245IEC66 model series in the Rubber-Insulated Flexible Cable range, with 300/500V / 450/750V rating, 1~6 cores (including 3+1 / 3+2 / 4+1) and 0.75~400mm².
- Model series
- YZ, YZW, YCW, YC, 60245IEC53, 60245IEC57, 60245IEC66
- Rated voltage
- 300/500V / 450/750V
- Core configuration
- 1~6 cores (including 3+1 / 3+2 / 4+1)
- Standard
- GB/T 5013.4 (IEC 60245-4) / JB/T 8735.2
Product Overview
Catalog-matched product identity
Rubber-Insulated Flexible Cable and Cord covers the YZ, YZW, YCW, YC, 60245IEC53, 60245IEC57, 60245IEC66 model series in the Rubber-Insulated Flexible Cable range, with 300/500V / 450/750V rating, 1~6 cores (including 3+1 / 3+2 / 4+1) and 0.75~400mm².
Technical Data
Customer catalog values
Product categoryRubber-Insulated Flexible Cable
Model seriesYZ, YZW, YCW, YC, 60245IEC53, 60245IEC57, 60245IEC66
Rated voltage300/500V / 450/750V
Core configuration1~6 cores (including 3+1 / 3+2 / 4+1)
Conductor cross-section0.75~400mm²
InsulationEPR compound (E)
SheathRubber compound (SE3) / chloroprene or equivalent elastomer (SE4)
Operating temperatureMaximum conductor temperature 65°C
StandardGB/T 5013.4 (IEC 60245-4) / JB/T 8735.2
Names, models and ratings are transcribed from the customer-supplied catalog. Final configuration follows the approved model and project schedule.
Applications
Application scope
Rubber-Insulated Flexible Cable300/500V / 450/750V systemsProject-specific electrical installations
