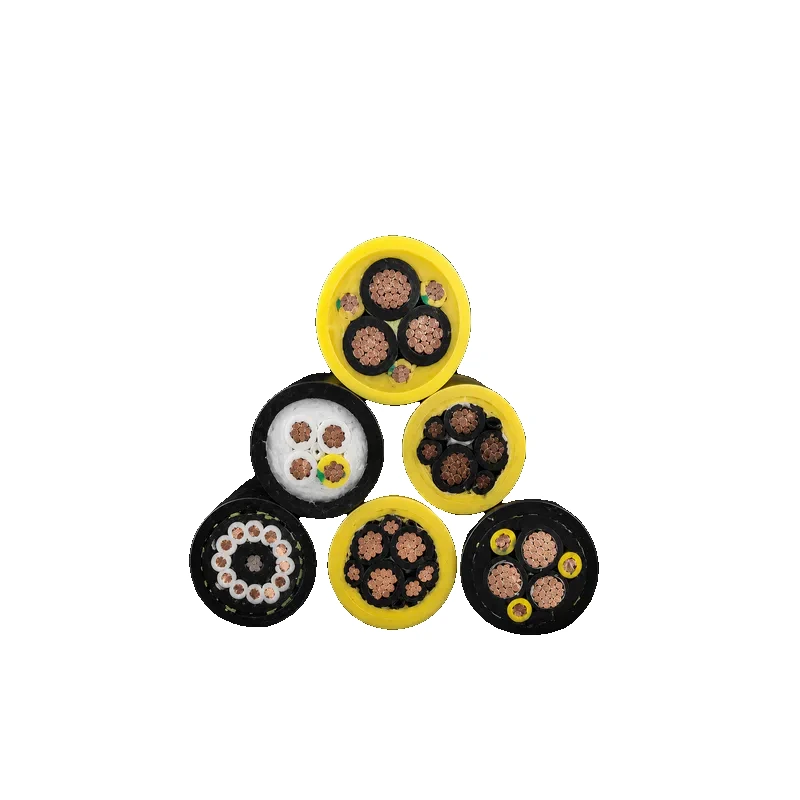

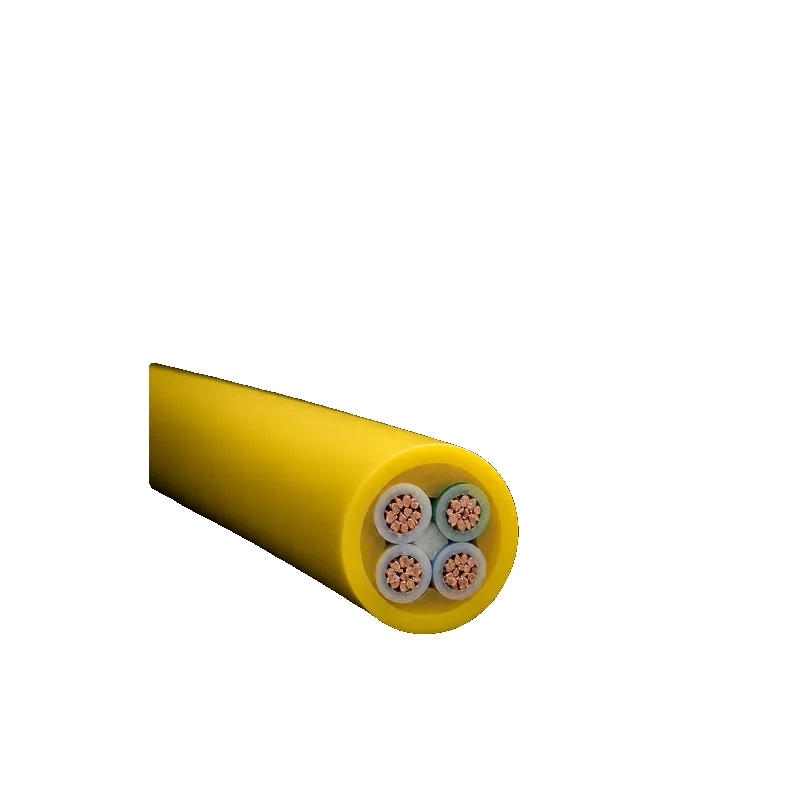

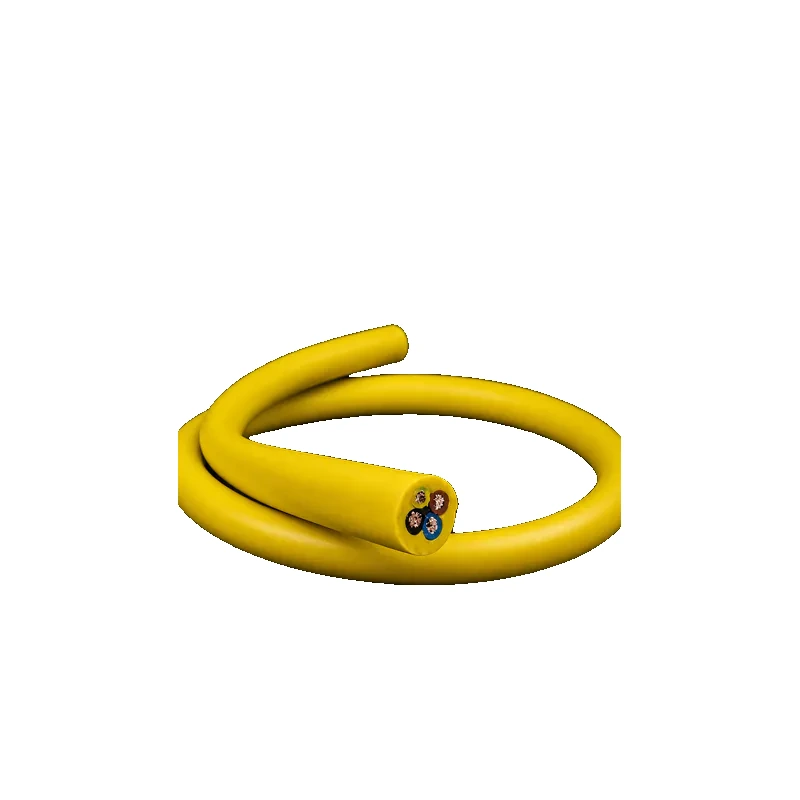

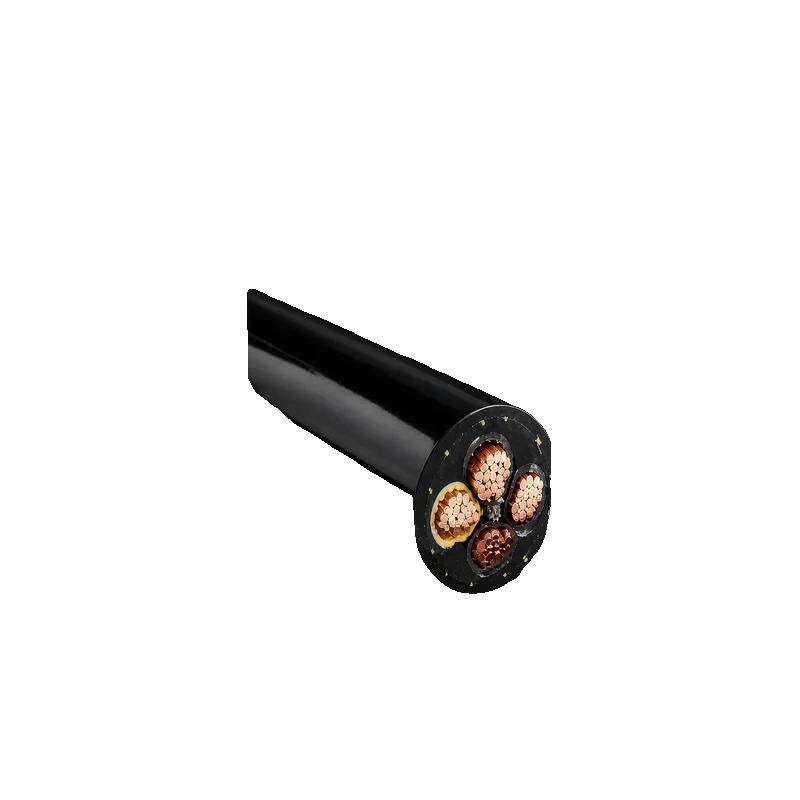

Reeling Cable
Reeling Cable
Reeling Cable covers the JTVV, JTEFR, JTSU, JTSF, JTVFVF, JTSS JTEUR, PUR-JTEFR model series in the Reeling Cable range, with 450/750V/0.6/1kV rating, power conductors: 3～5 cores; control or signal conductors: 2～24 cores and 2.5～240mm2 0.75～6mm2.
- Model series
- JTVV, JTEFR, JTSU, JTSF, JTVFVF, JTSS JTEUR, PUR-JTEFR
- Rated voltage
- 450/750V/0.6/1kV
- Core configuration
- power conductors: 3～5 cores; control or signal conductors: 2～24 cores
- Standard
- enterprise standard
Product Overview
Catalog-matched product identity
Reeling Cable covers the JTVV, JTEFR, JTSU, JTSF, JTVFVF, JTSS JTEUR, PUR-JTEFR model series in the Reeling Cable range, with 450/750V/0.6/1kV rating, power conductors: 3～5 cores; control or signal conductors: 2～24 cores and 2.5～240mm2 0.75～6mm2.
Technical Data
Customer catalog values
Product categoryReeling Cable
Model seriesJTVV, JTEFR, JTSU, JTSF, JTVFVF, JTSS JTEUR, PUR-JTEFR
Rated voltage450/750V/0.6/1kV
Core configurationpower conductors: 3～5 cores; control or signal conductors: 2～24 cores
Conductor cross-section2.5～240mm2 0.75～6mm2
InsulationNitrile PVC (F) / EPR (E) / TPE (S)
SheathNitrile PVC (F) / TPE (S) / polyurethane elastomer (U)
Operating temperatureNitrile PVC and TPE insulation: -25°C to +70°C; EPR insulation: -25°C to +90°C
Standardenterprise standard
Names, models and ratings are transcribed from the customer-supplied catalog. Final configuration follows the approved model and project schedule.
Applications
Application scope
Reeling Cable450/750V/0.6/1kV systemsProject-specific electrical installations
