PVC Insulated Wire and Cable

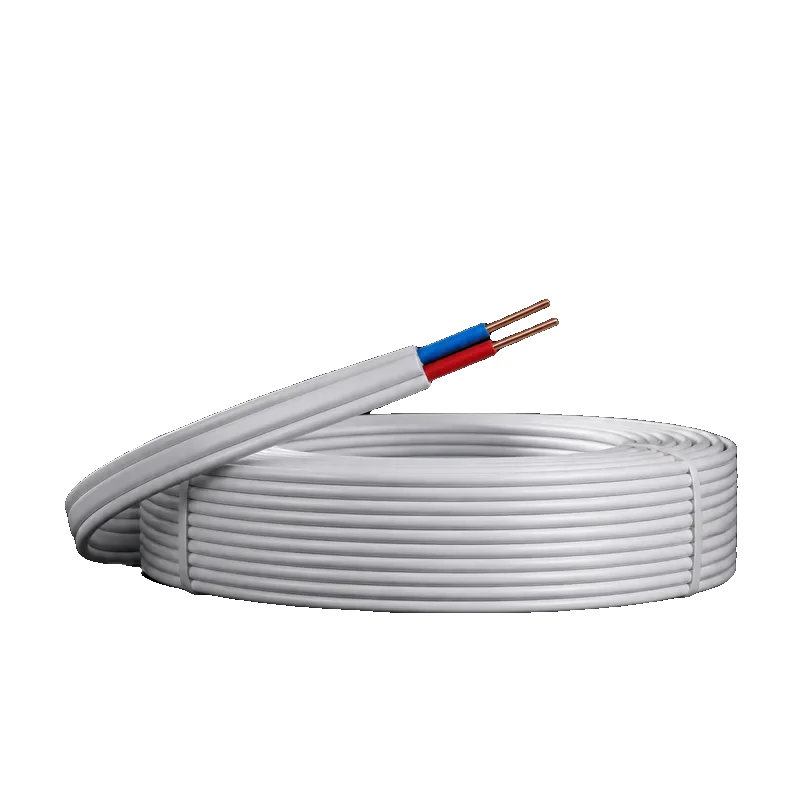

PVC Insulated PVC Sheathed Flat Cable
PVC Insulated PVC Sheathed Flat Cable covers the BVVB, BLVVB model series in the PVC Insulated Wire and Cable range, with 300/500V rating, 2~3 cores and copper conductor:0.75~10mm²; aluminium conductor:2.5~10mm².
- Model series
- BVVB, BLVVB
- Rated voltage
- 300/500V
- Core configuration
- 2~3 cores
- Standard
- JB/T8734.2 / GB/T19666
Product Overview
Catalog-matched product identity
PVC Insulated PVC Sheathed Flat Cable covers the BVVB, BLVVB model series in the PVC Insulated Wire and Cable range, with 300/500V rating, 2~3 cores and copper conductor:0.75~10mm²; aluminium conductor:2.5~10mm².
Technical Data
Customer catalog values
Product categoryPVC Insulated Wire and Cable
Model seriesBVVB, BLVVB
Rated voltage300/500V
Core configuration2~3 cores
Conductor cross-sectioncopper conductor:0.75~10mm²; aluminium conductor:2.5~10mm²
InsulationPolyvinyl chloride (PVC)
SheathPolyvinyl chloride (PVC)
Operating temperature70°C
StandardJB/T8734.2 / GB/T19666
Names, models and ratings are transcribed from the customer-supplied catalog. Final configuration follows the approved model and project schedule.
Applications
Application scope
PVC Insulated Wire and Cable300/500V systemsProject-specific electrical installations
