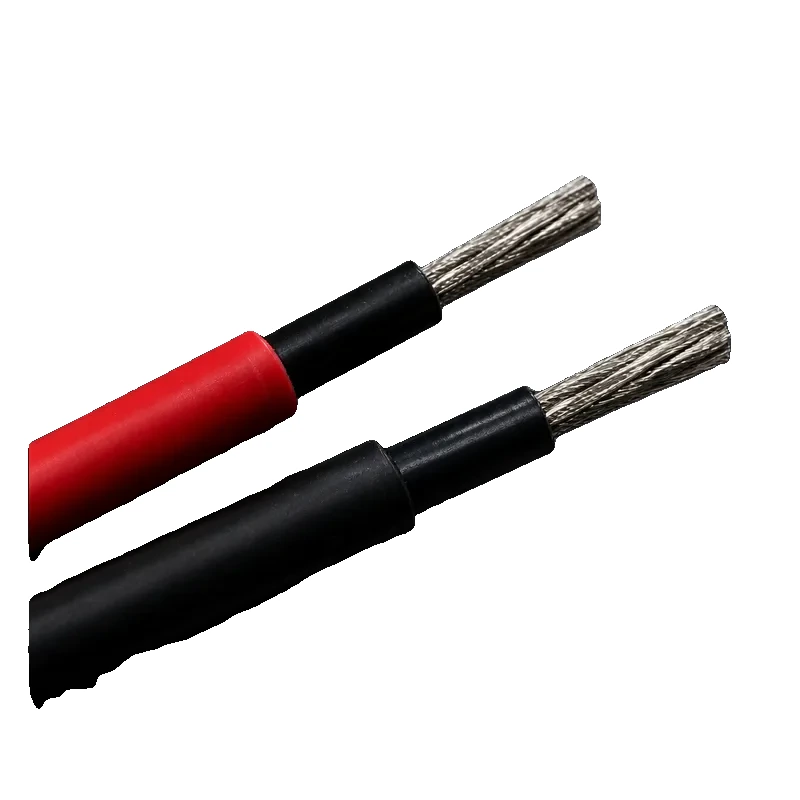

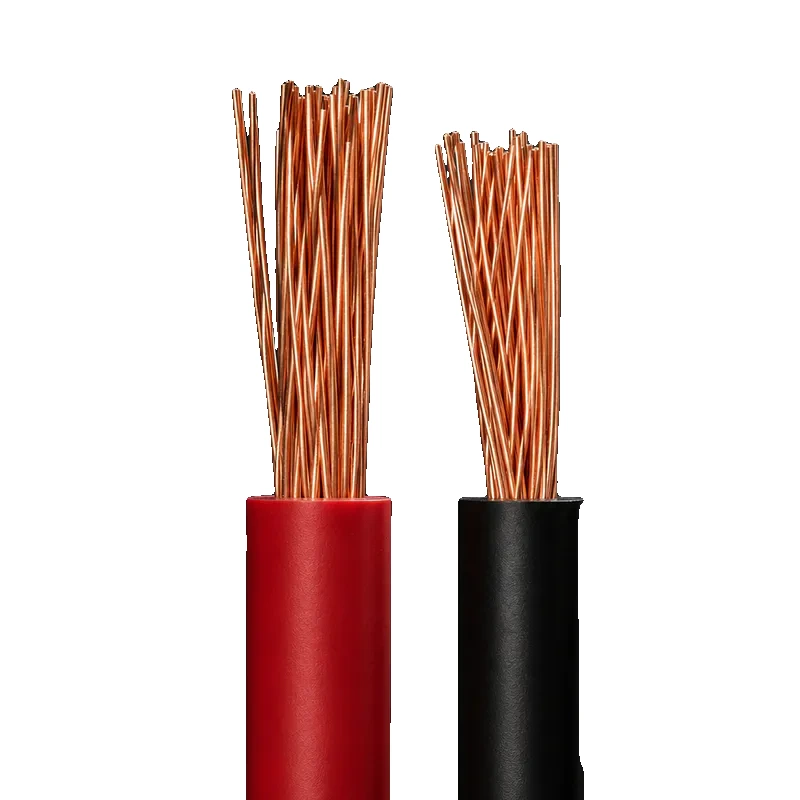

Photovoltaic Cable
Photovoltaic Cable
Photovoltaic Cable covers the PV1-F, HIZ2Z2-K model series in the Photovoltaic Cable range, with PV1-F: AC 0.6/1kV / DC 1.8kV; HIZ2Z2-K: AC 1.0/1.0kV / DC 1.5kV rating, 1 core and 1.5~240mm².
- Model series
- PV1-F, HIZ2Z2-K
- Rated voltage
- PV1-F: AC 0.6/1kV / DC 1.8kV; HIZ2Z2-K: AC 1.0/1.0kV / DC 1.5kV
- Core configuration
- 1 core
- Standard
- EN 50618 / 2pfG 1169/08
Product Overview
Catalog-matched product identity
Photovoltaic Cable covers the PV1-F, HIZ2Z2-K model series in the Photovoltaic Cable range, with PV1-F: AC 0.6/1kV / DC 1.8kV; HIZ2Z2-K: AC 1.0/1.0kV / DC 1.5kV rating, 1 core and 1.5~240mm².
Technical Data
Customer catalog values
Product categoryPhotovoltaic Cable
Model seriesPV1-F, HIZ2Z2-K
Rated voltagePV1-F: AC 0.6/1kV / DC 1.8kV; HIZ2Z2-K: AC 1.0/1.0kV / DC 1.5kV
Core configuration1 core
Conductor cross-section1.5~240mm²
InsulationHigh-temperature irradiation-crosslinked LSZH polyolefin
SheathHigh-temperature irradiation-crosslinked LSZH polyolefin
Operating temperatureMaximum conductor temperature 90°C (up to 120°C); ambient temperature -40 to +90°C; short-circuit temperature 200°C (5 s)
Fire performanceLow-smoke halogen-free flame-retardant (WDZ code not specified in the source catalog)
StandardEN 50618 / 2pfG 1169/08
Names, models and ratings are transcribed from the customer-supplied catalog. Final configuration follows the approved model and project schedule.
Applications
Application scope
Photovoltaic CablePV1-F: AC 0.6/1kV / DC 1.8kV; HIZ2Z2-K: AC 1.0/1.0kV / DC 1.5kV systemsProject-specific electrical installations
