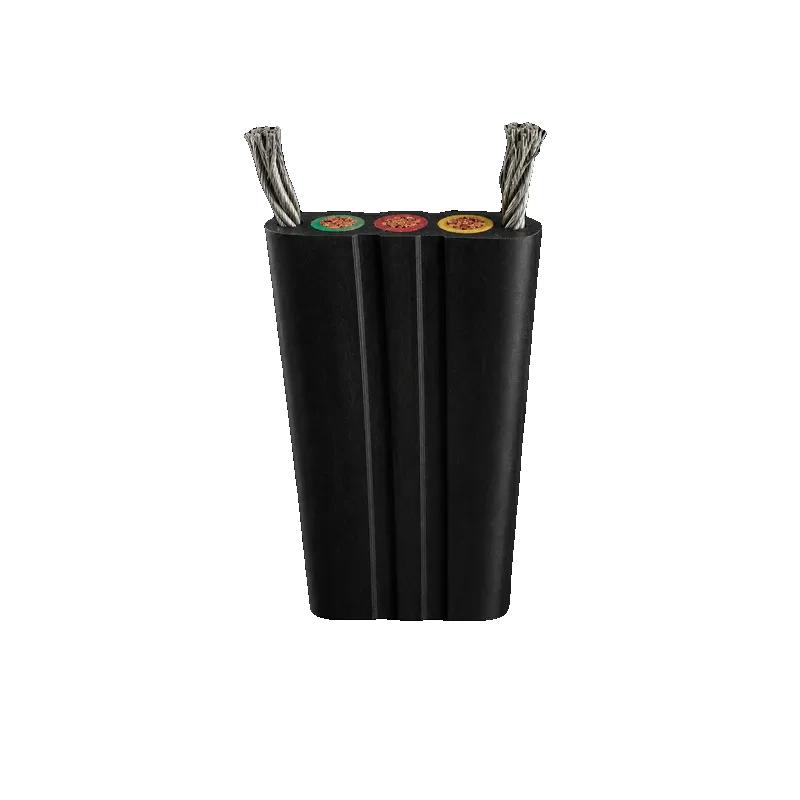

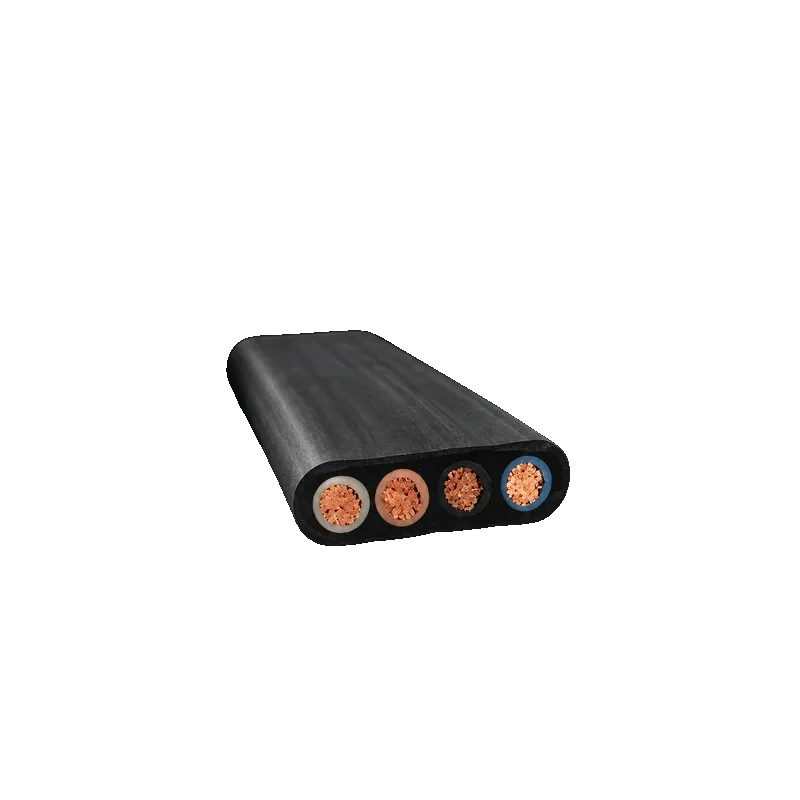

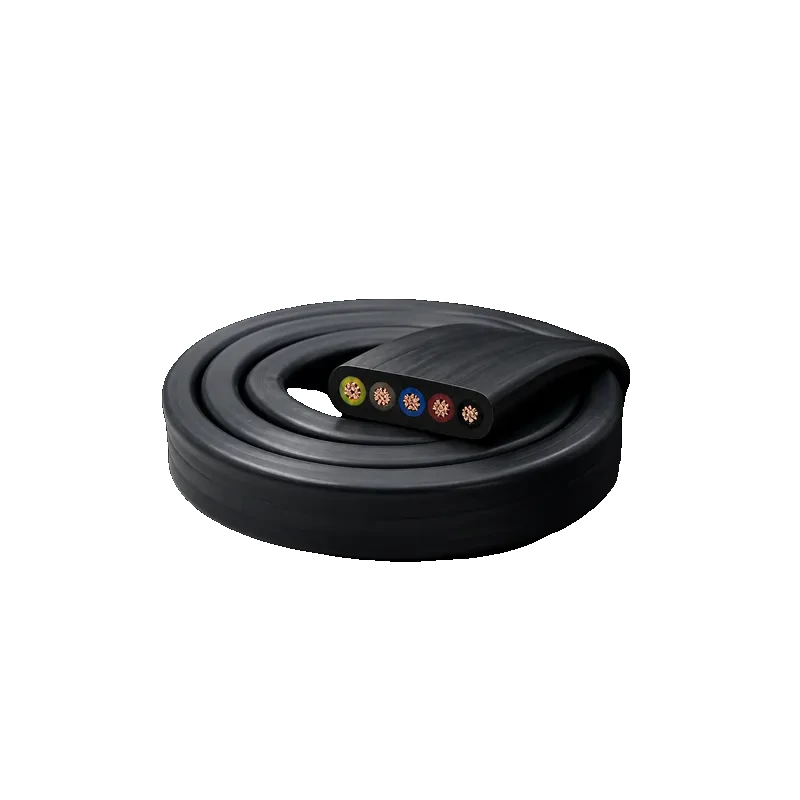

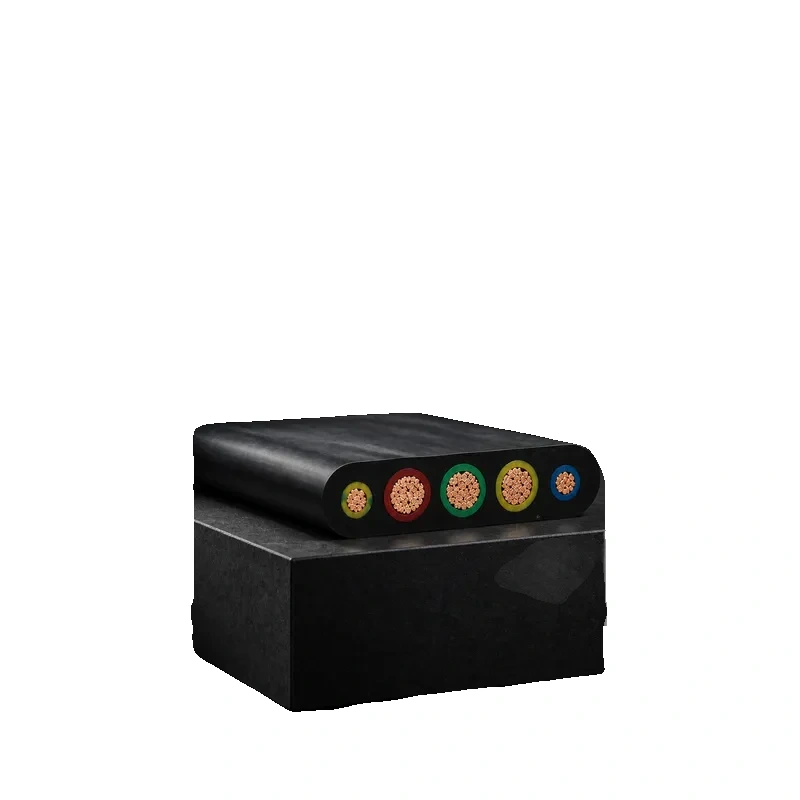

Flat Cable
Flat Cable
Flat Cable covers the YVFB, YFFB, YVFBG, YFFBG, YFFBP, YVFBR, YFFBR, YEFB, YEFBG model series in the Flat Cable range, with 300/500V/450/750V/0.6/1kV rating, 2～5 cores and 0.75～300mm2.
- Model series
- YVFB, YFFB, YVFBG, YFFBG, YFFBP, YVFBR, YFFBR, YEFB, YEFBG
- Rated voltage
- 300/500V/450/750V/0.6/1kV
- Core configuration
- 2～5 cores
- Standard
- enterprise standard
Product Overview
Catalog-matched product identity
Flat Cable covers the YVFB, YFFB, YVFBG, YFFBG, YFFBP, YVFBR, YFFBR, YEFB, YEFBG model series in the Flat Cable range, with 300/500V/450/750V/0.6/1kV rating, 2～5 cores and 0.75～300mm2.
Technical Data
Customer catalog values
Product categoryFlat Cable
Model seriesYVFB, YFFB, YVFBG, YFFBG, YFFBP, YVFBR, YFFBR, YEFB, YEFBG
Rated voltage300/500V/450/750V/0.6/1kV
Core configuration2～5 cores
Conductor cross-section0.75～300mm2
InsulationFlexible PVC (V) / nitrile PVC (VF) / EPR compound (E)
SheathNitrile PVC (F) / polyurethane elastomer (U)
Operating temperatureFlexible PVC and nitrile PVC: -25°C to +70°C; EPR insulation: -25°C to +90°C
Standardenterprise standard
Names, models and ratings are transcribed from the customer-supplied catalog. Final configuration follows the approved model and project schedule.
Applications
Application scope
Flat Cable300/500V/450/750V/0.6/1kV systemsProject-specific electrical installations
