PVC Insulated Wire and Cable

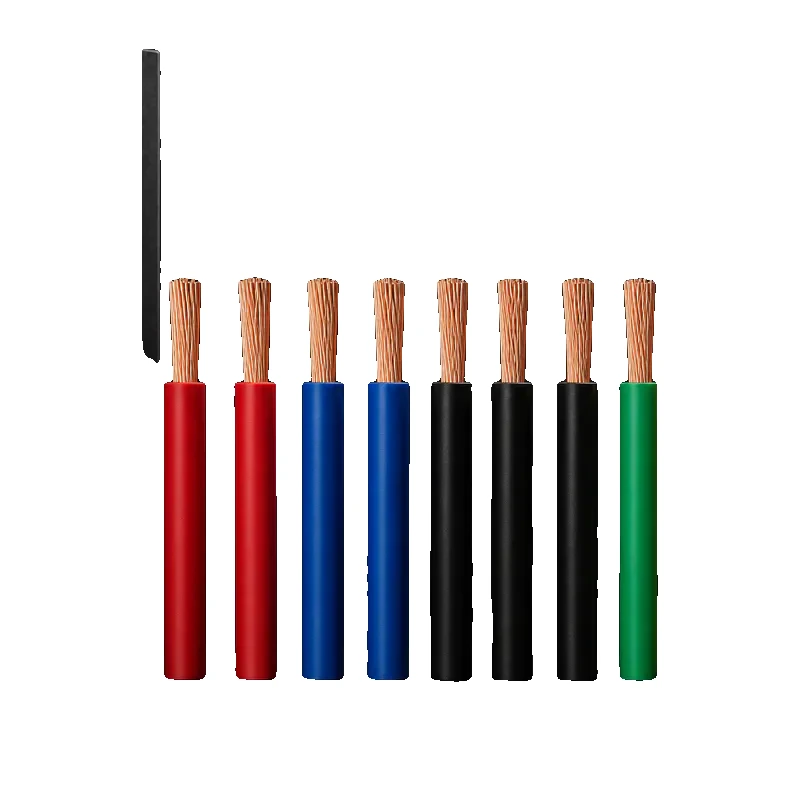

Copper Conductor PVC Insulated Flexible Cable
Copper Conductor PVC Insulated Flexible Cable covers the BVR, ZA(B/C)-BVR model series in the PVC Insulated Wire and Cable range, with 450/750V rating, 1 core and 2.5~185mm².
- Model series
- BVR, ZA(B/C)-BVR
- Rated voltage
- 450/750V
- Core configuration
- 1 core
- Standard
- JB/T8734.2 / GB/T19666
Product Overview
Catalog-matched product identity
Copper Conductor PVC Insulated Flexible Cable covers the BVR, ZA(B/C)-BVR model series in the PVC Insulated Wire and Cable range, with 450/750V rating, 1 core and 2.5~185mm².
Technical Data
Customer catalog values
Product categoryPVC Insulated Wire and Cable
Model seriesBVR, ZA(B/C)-BVR
Rated voltage450/750V
Core configuration1 core
Conductor cross-section2.5~185mm²
InsulationPolyvinyl chloride (PVC)
SheathUnsheathed
Operating temperature70°C
Fire performanceZA / ZB / ZC flame-retardant classes A / B / C (non-flame-retardant type also available)
StandardJB/T8734.2 / GB/T19666
Names, models and ratings are transcribed from the customer-supplied catalog. Final configuration follows the approved model and project schedule.
Applications
Application scope
PVC Insulated Wire and Cable450/750V systemsProject-specific electrical installations
